5.2 Guide bar
5.2.6 Removing of bowden cable handle adjustment new setup

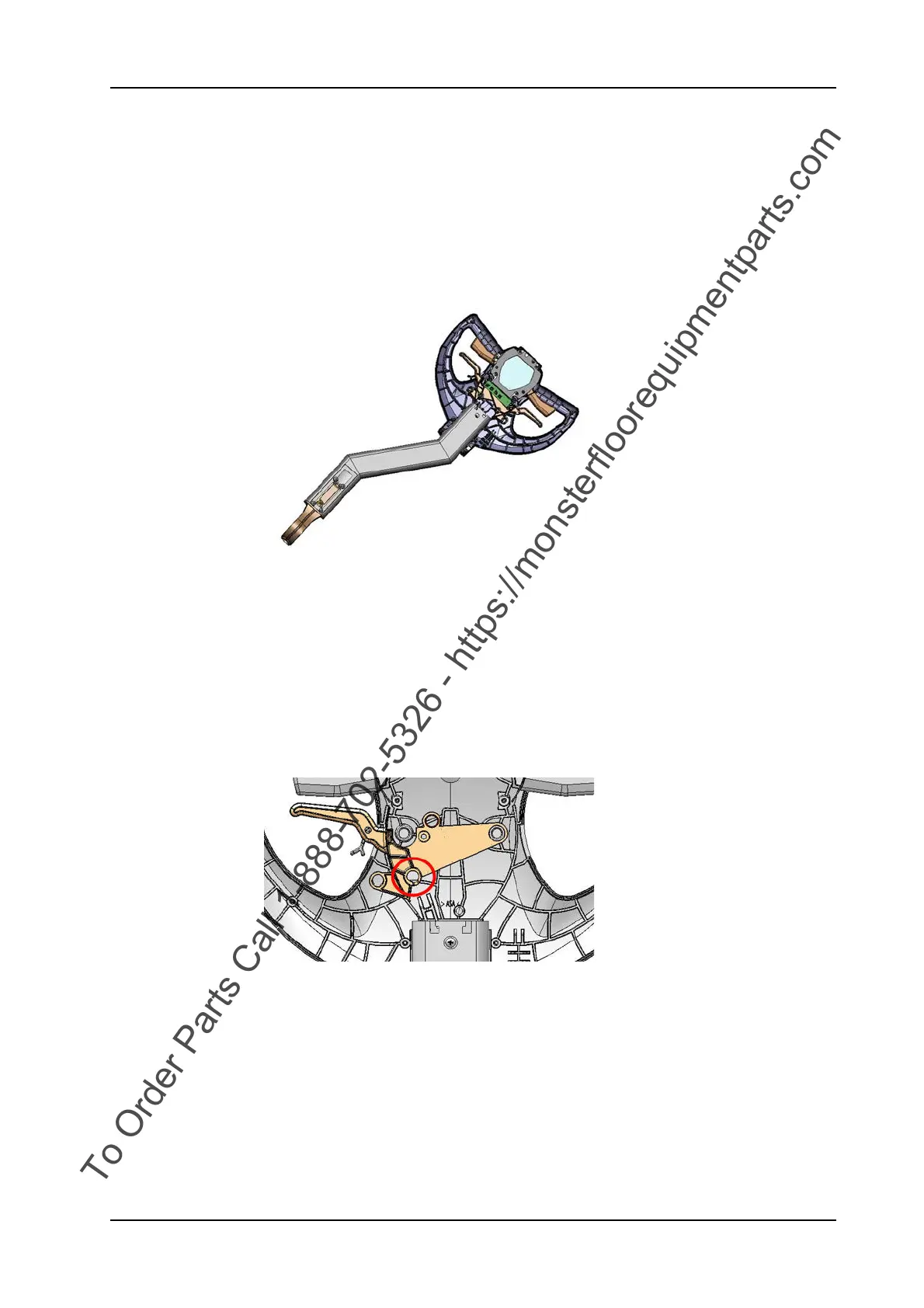

Picture 27: Guide bar
• Remove the cover (02/103) and release the tension of the
bowden cable according to chapter ADJUSTING OF BOWDEN
CABLE HANDLE.
• Remove the toothrockers according to chapter REMOVING OF
TOOTHROCKER.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the end bolt of the bowden cable (02/101) for handle
adjustment at handle adjustment lever (01/116).
Picture 28: Handle adjustment lever end bolt
• Thread the bowden cable out of the guide bar (02/102).
