5.7 Brush & Motor
5.7.4 Mounting of brush motor

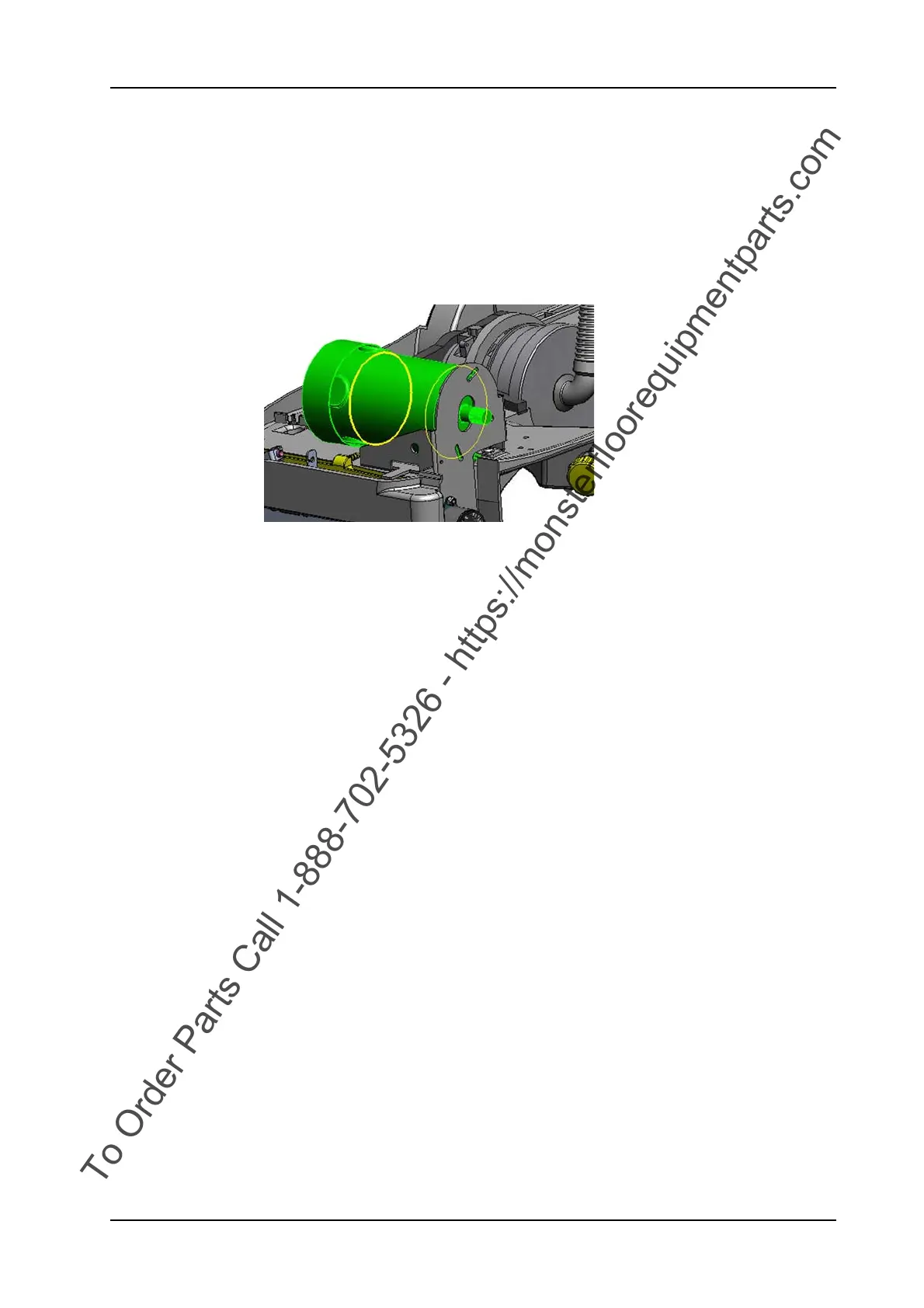

Picture 59: Brush motor
• Mount the brush motor.
• Position the brush motor fixation screws.
• Connect brush motor wires at the connection block.
Remarks
If you removed the charger and connection block, please mount them
again.
• Complete assembling according to chapter MOUNTING OF
BRUSH MOTOR BELT.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK ASSEMBLY.
