5.5 Tank cover and tank
5.5.3 Removing of clear water tank

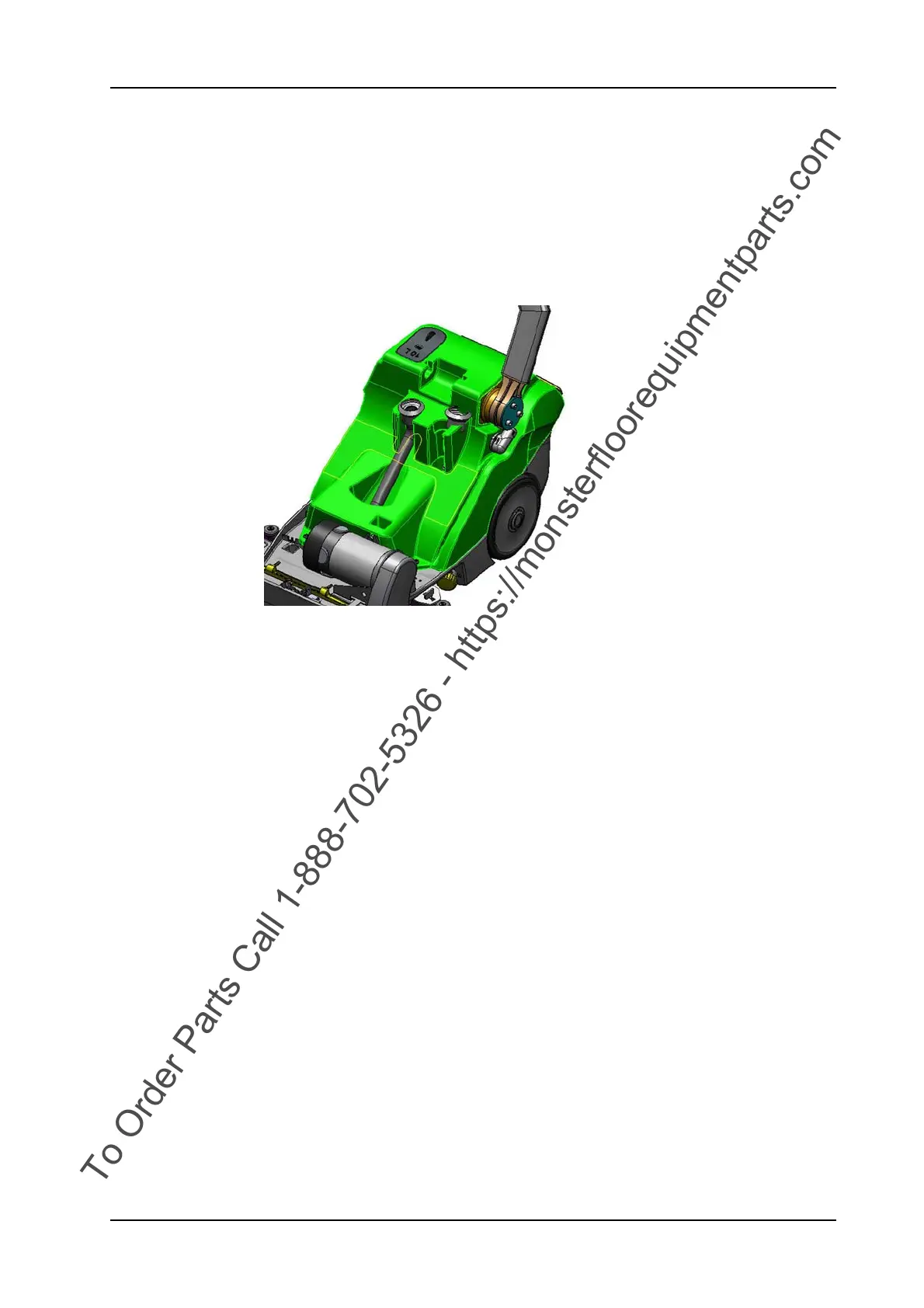

Picture 52: Clear water tank
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Disconnect wires at the electronics (01/109).
• Thread out the wires of the clear water tank.
Service
Thread out the wires first and then the charger cable with the plug.
• Remove the three screws (02/105) of the guide bar fixation.
• Remove guide bar from the bracket (02/112).
• According to what you need to exchange, remove the existing
parts from the clear water tank and place it on the new one.
