GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-10
Copyright © 2013, Diversey Inc.
05.11.10 guide bar - bowden cable handle adjustment - 350B_350E_V1.00.fm
5.2 Guide bar
5.2.1 Adjusting of bowden cable handle

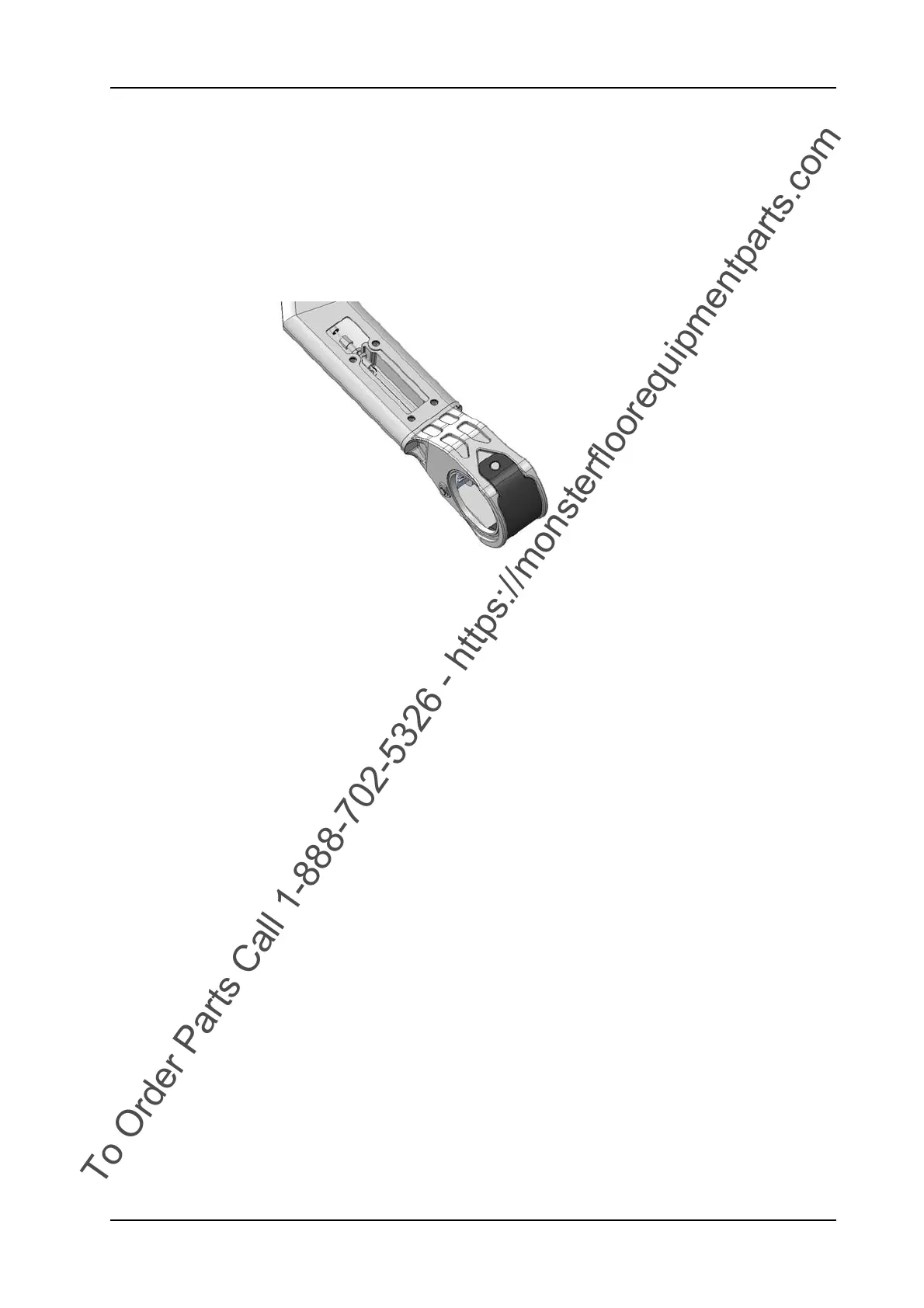

Picture 17: Bowden cable handle
• Remove the upper two screws (02/104) and only loosen the
lower two screws.
• Remove cover (02/103).
• Release the counter nut with a 10mm fork spanner.
• Adjust the bowden cable with a 8mm fork spanner.
Adjustment
Make sure that the bowden cable is not tensioned to tight. Let the
handle adjustment lever have enough play (+/- 1mm).
Remarks
Before mounting the cover again, check the adjustment at different
positions of the guide bar.
• Tighten the counter nut.
• Mount cover.
• Mount and tighten the screws.
Adjustment
Tighten the screws (02/104) with 5 Nm.
To loosen the bowden cable adjust clockwise.
To tighten the bowden cable adjust anti clockwise.
