5.5 Tank cover and tank
5.5.1 Removing of clear water tank assembly

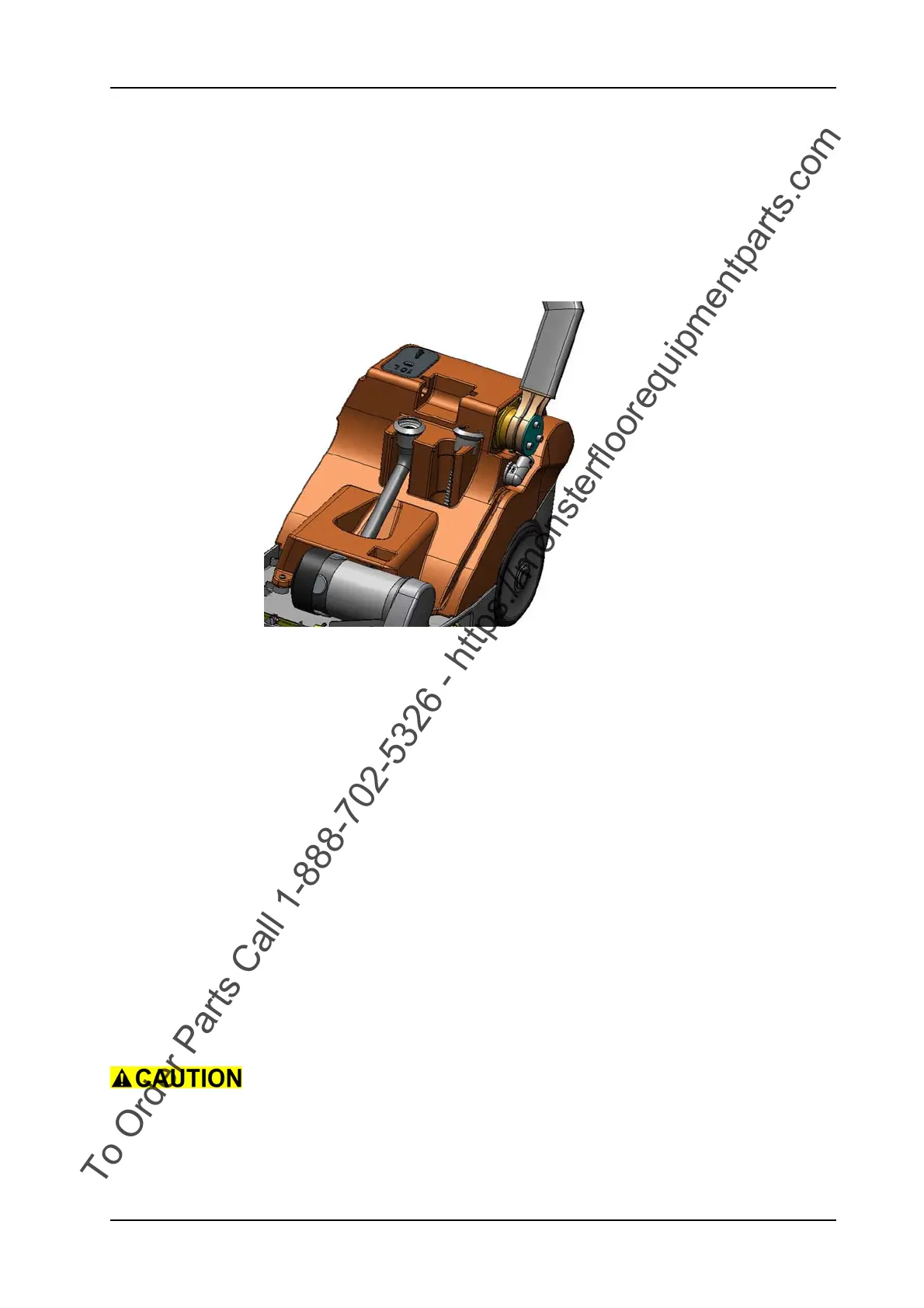

Picture 49: Clear water tank assembly
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Remove the threaded adaptor (04/101) of the suction hose (04/
102).
• Remove the threaded adaptor (07/101) of the angle hose (07/
102).
• Remove the 4 screws (06/112) for the battery cover (06/113).
Remarks
Disconnect the battery plug and unthread the charging mains.
• Remove battery cover (06/113).
• Remove the 4 fixation screws (06/112) for clear water tank (06/
116).
Remarks
Be aware that 2 screws are in the battery compartment.
Ensure that no water is in the fresh water system before you remove
the clear water tank.
