GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-35
Copyright © 2013, Diversey Inc.
05.54.10 tank cover and tank - clear water tank assembly - 350B_V1.00.fm

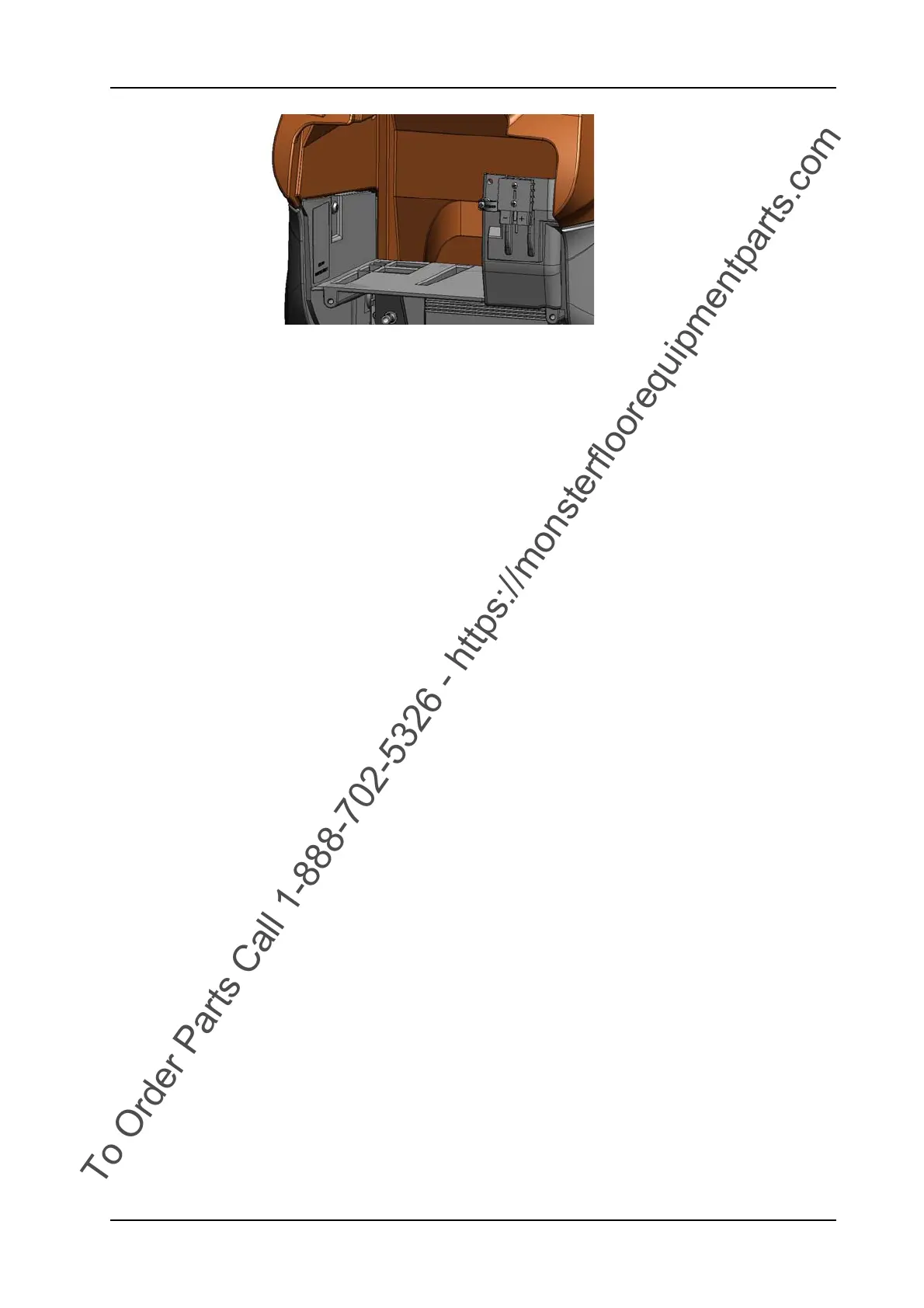

Picture 50: Clear water tank fixation
• Loosen the screw (08/104) with two 13mm fork spanners as it
has a self locking nut.
• Lift clear water tank (06/116) with guide bar off the chassis.
• Lay the clear water tank and guide bar on the LH side.
