6.4 Charger
6.4.1 Removing of charger

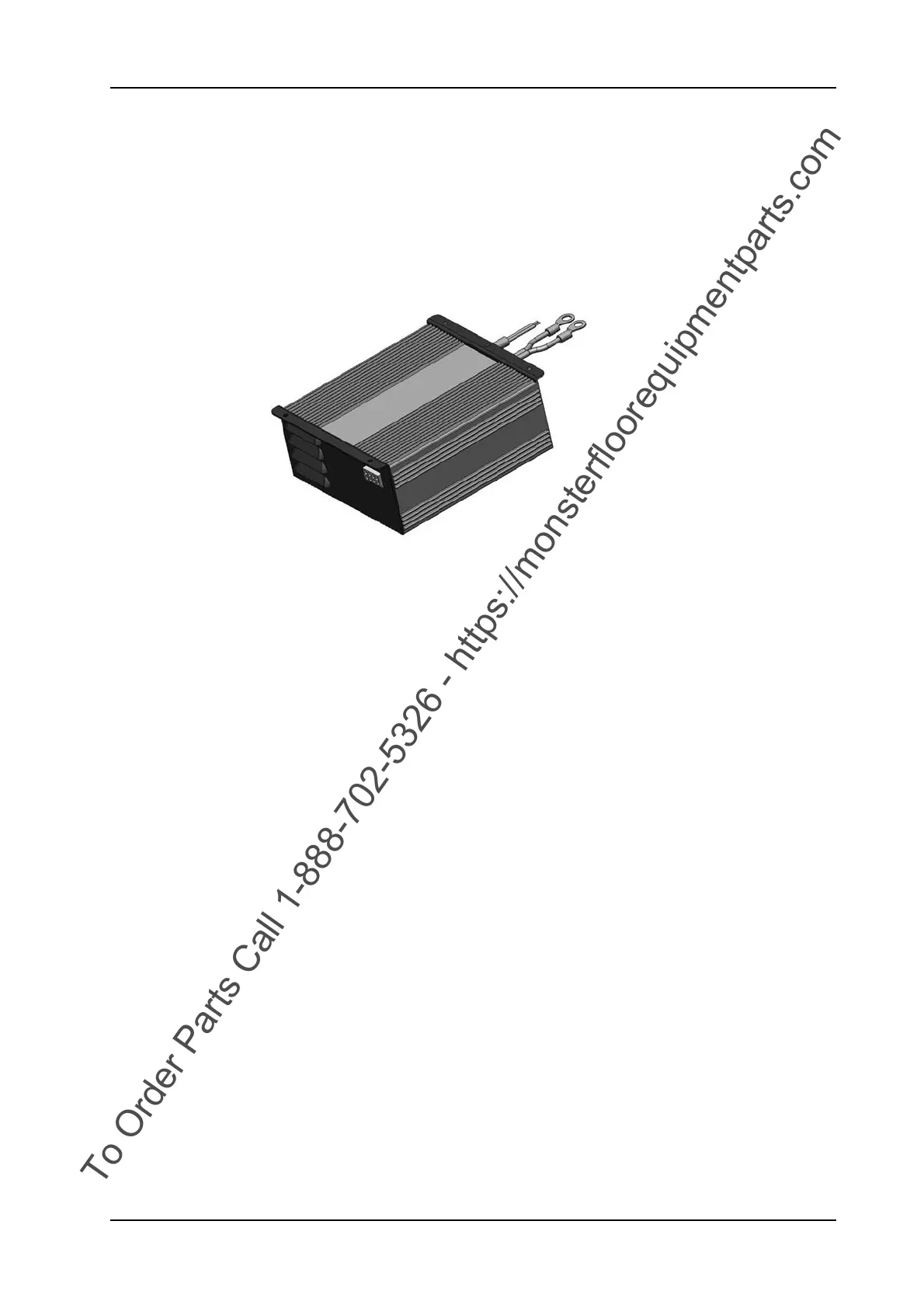

Picture 10: Charger
• Remove the 4 screws (06/112) for the battery cover (06/113).
Remarks
Disconnect the battery plug and unthread the charging mains.
• Remove battery cover (06/113).
• Remove the charger (05/101).
Remarks
Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
• Remove the connection block fixation screw (05/134) for better
access to connection block.
• Disconnect the wires from connection block and the
communication plug.
