5.1 Handle
5.1.3 Removing of switch lever

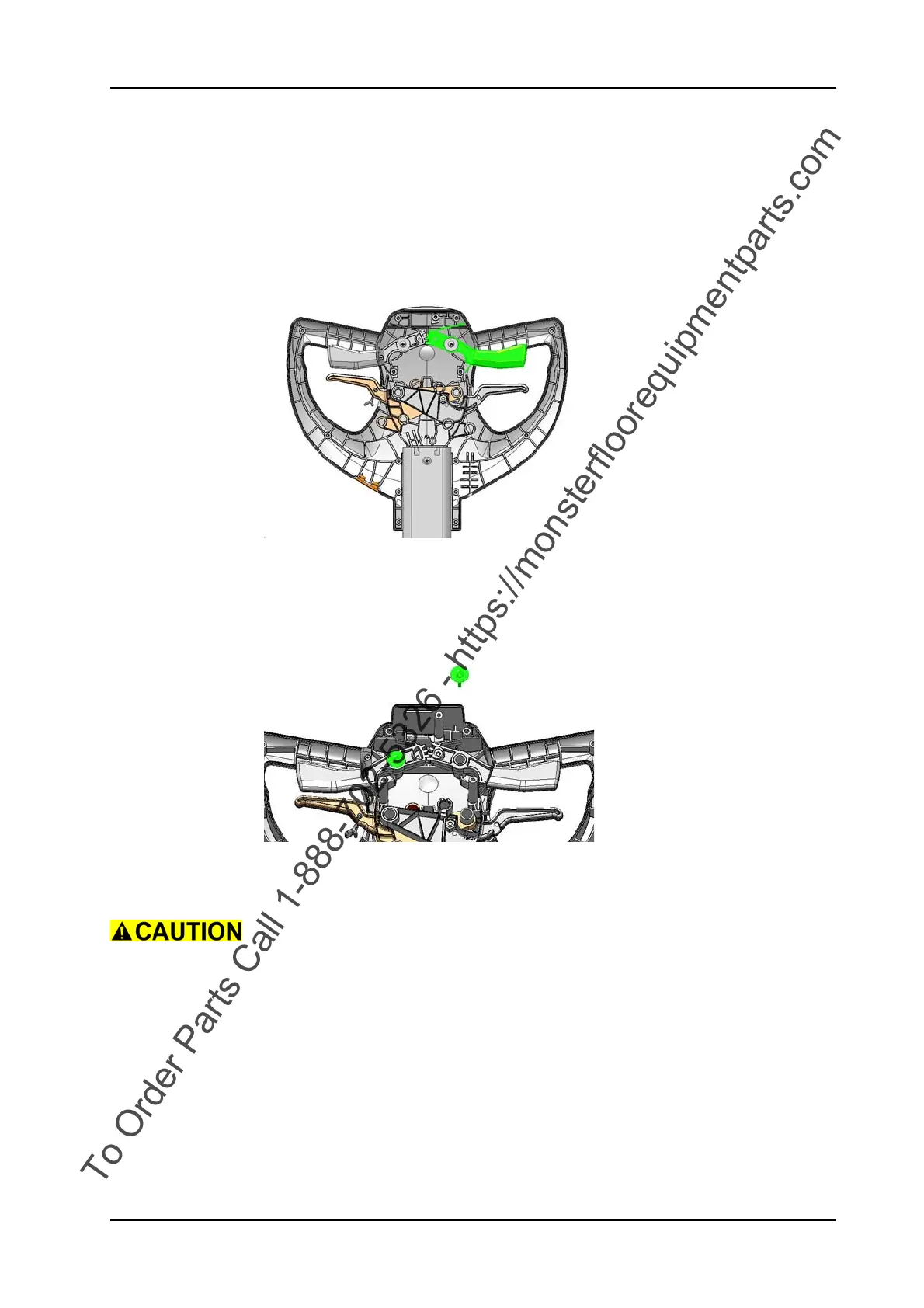

Picture 5: Switch lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove screw (01/102) for left switch lever and screw (01/102)
for right switch lever.
Picture 6: Switch lever screws
• Remove the switcher levers (01/114).
You can only remove both switch levers together.
Remarks
Both levers are the same spare part.
