Taski swingo 350B - Brush & Motor; Removing of Brush Motor Belt

GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-41
Copyright © 2013, Diversey Inc.
05.58.10 brush & motor - brush motor belt - 350B_V1.00.fm
5.7 Brush & Motor
5.7.1 Removing of brush motor belt

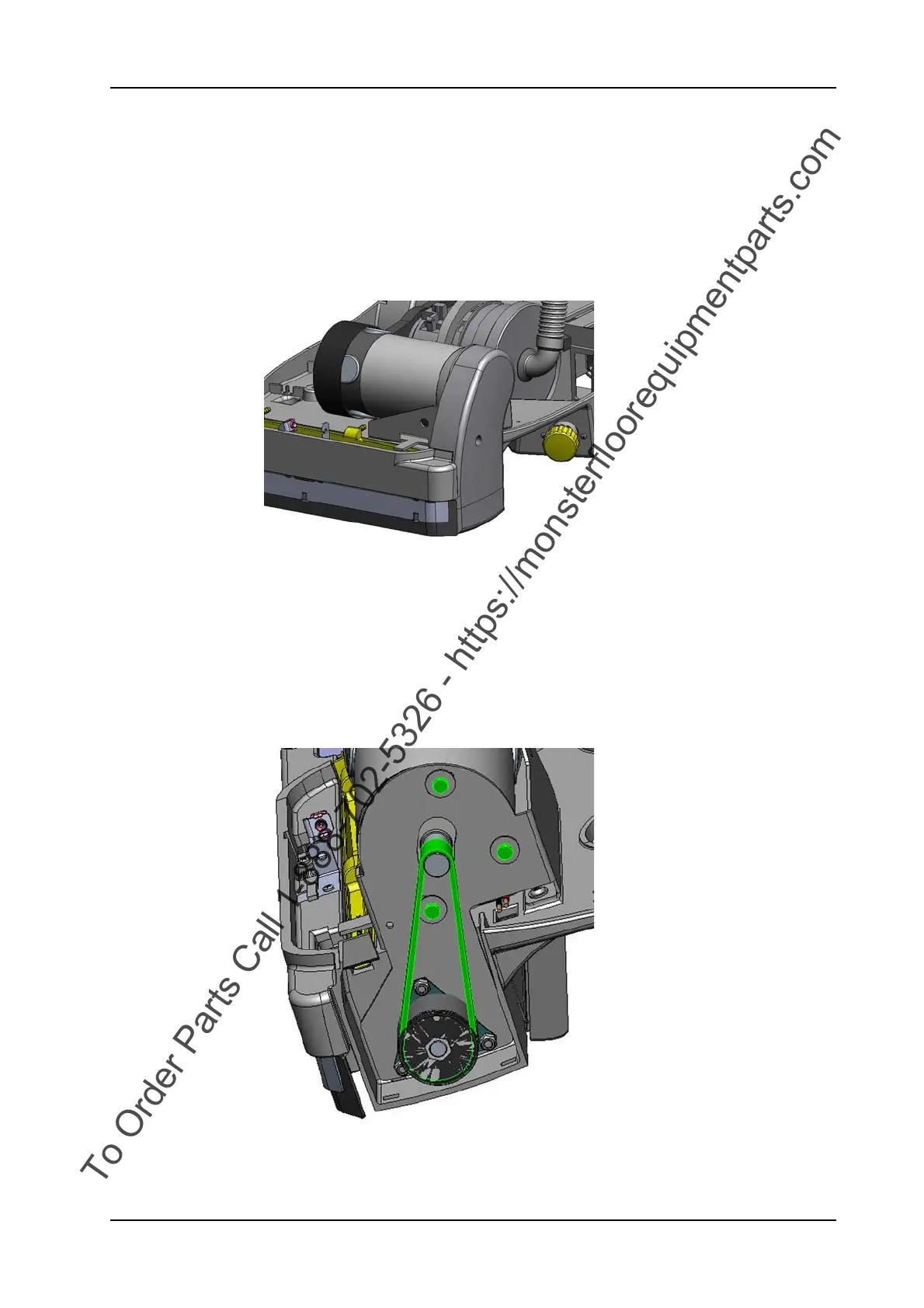

Picture 56: Brush and motor
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Remove screw (08/107) for belt cover (08/106).
• Remove belt cover (08/106).
• Untighten the 3 fixation screws (08/108) of the brush motor
(08/112) with a 10mm fork spanner/nut.
• Remove the brush motor belt (08/110) as the tension is now
released.
Picture 57: Brush motor belt
