GTS Technical Manual
26. March 2013 Edition: V2.00/2013 6-10
Copyright © 2013, Diversey Inc.
06.18.17 electronics - 350B_455B_V1.01.fm
6.3 Electronics
6.3.2 Mounting of electronics

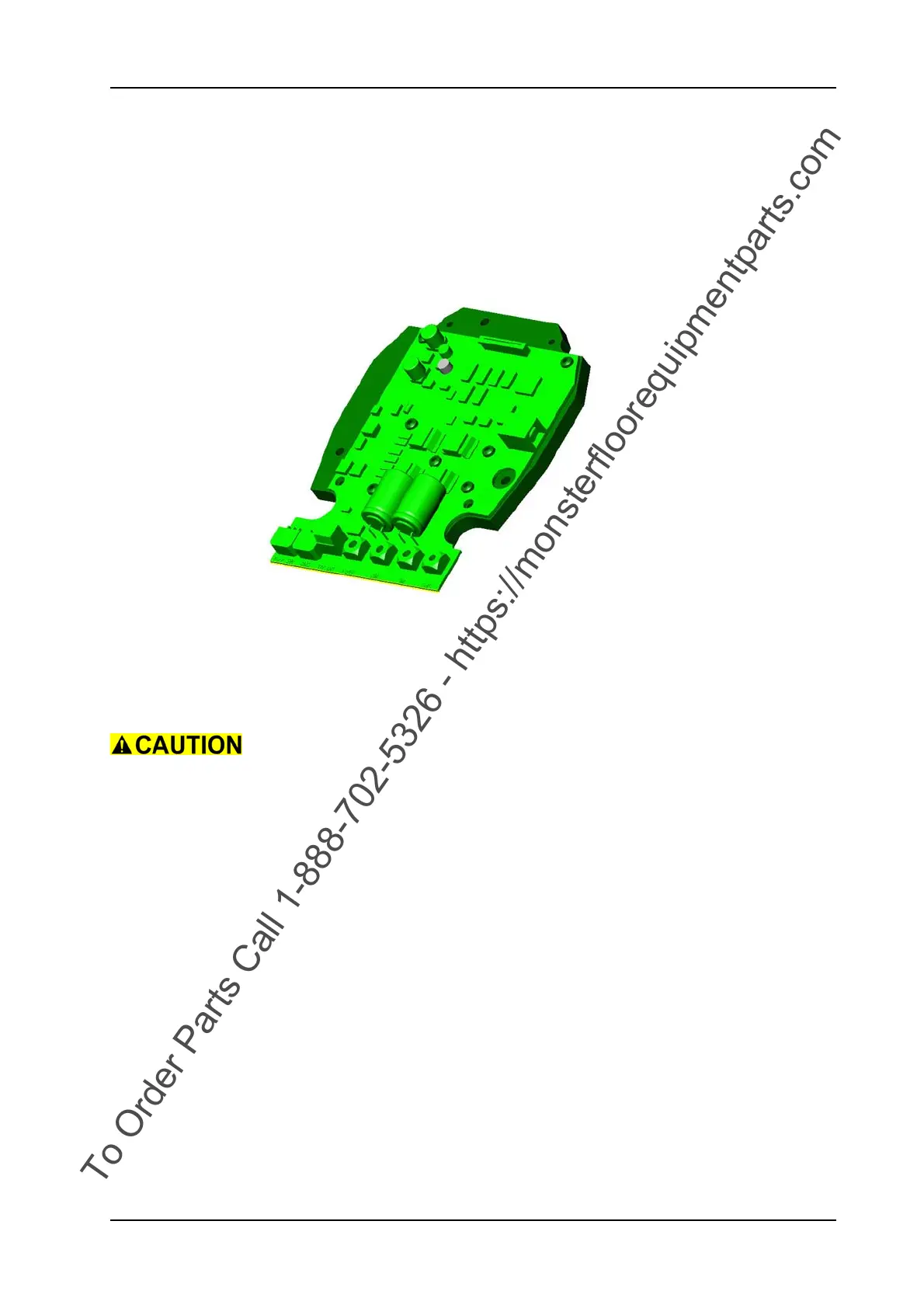

Picture 8: Electronics
• Mount the electronics.
• Connect the wires to the power electronics.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Tighten the connectors with the correct torque. Refer to adjustment
or the spare parts list.
Adjustment
M5 screw with: 5.0Nm --> +24VDC, brush and vacuum motor.
M4 screw: 3.0Nm --> GND.
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
