5.7 Brush & Motor
5.7.6 Mounting of brush pulley

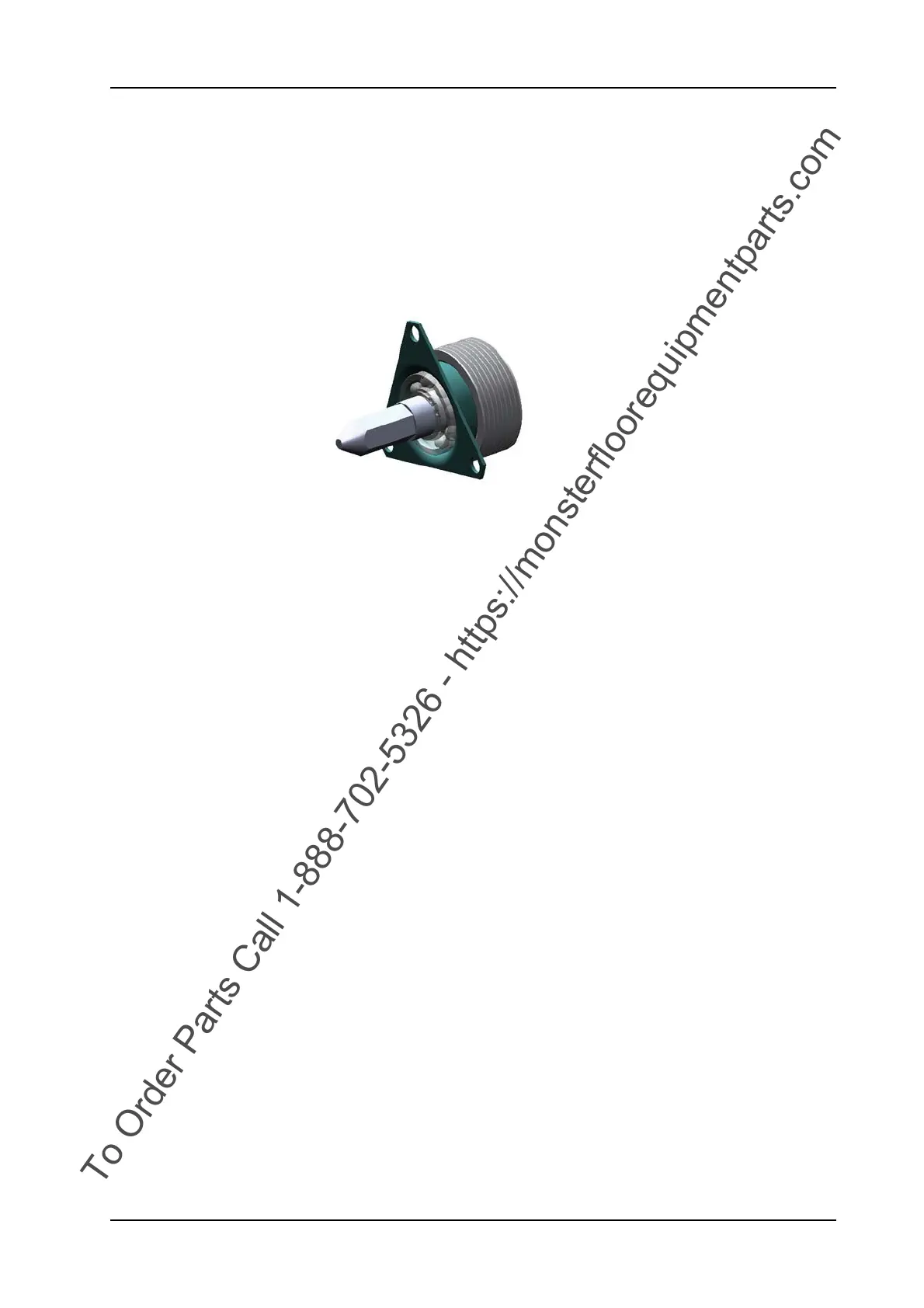

Picture 61: Brush pulley
• Position the brush pulley assembly.
• Mount the 3 self locking nuts with a 10mm fork spanner/nut.
• Mount the brush.
• Mount the brush holder.
• Mount the handle for the brush holder.
• Complete assembling according to chapter MOUNTING OF
BRUSH MOTOR BELT.
