GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-1
Copyright © 2013, Diversey Inc.
05.10.10 handle - cover and electronic - 350B_V1.00.fm
5.1 Handle
5.1.1 Removing of handle cover and electronics

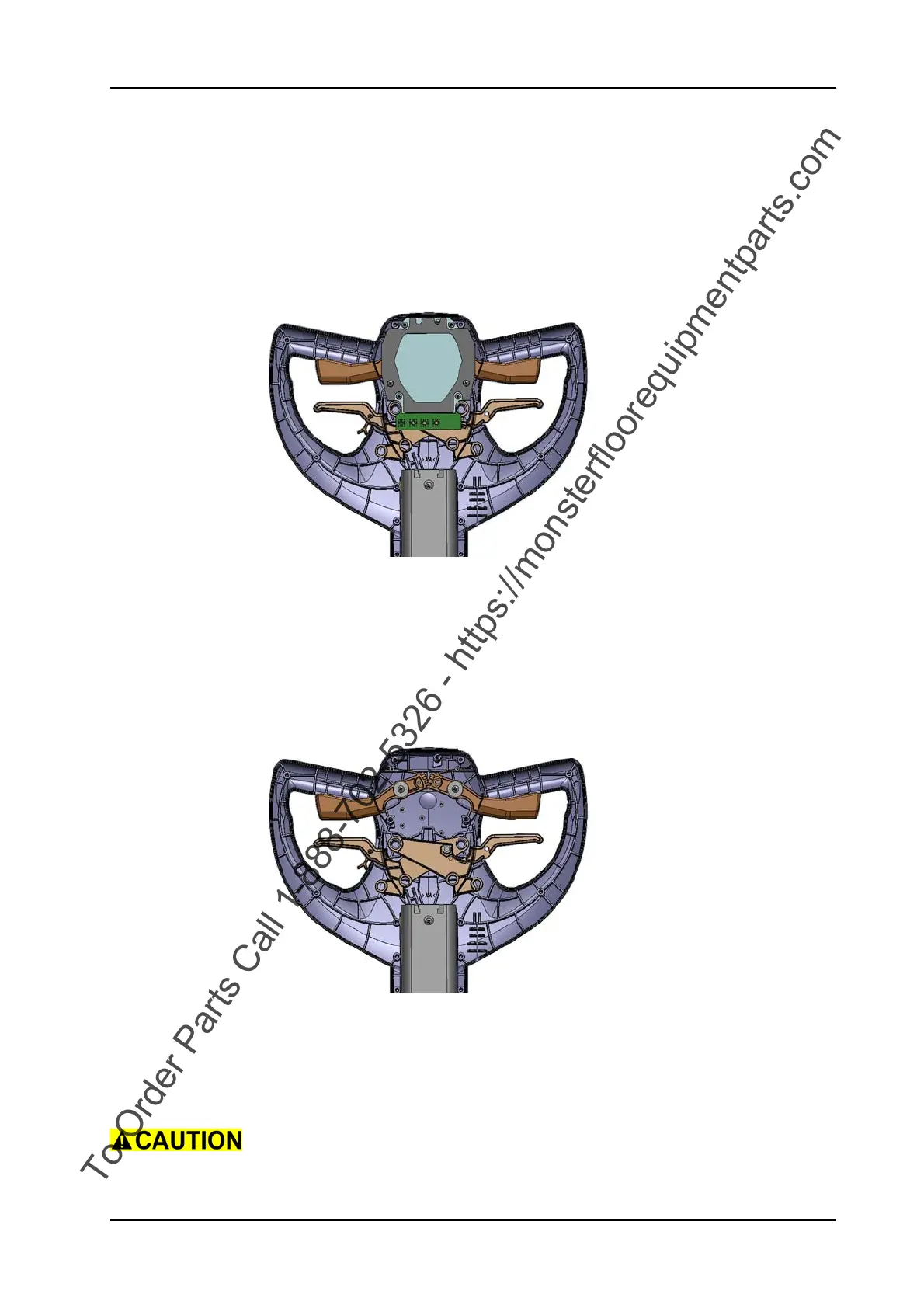

Picture 1: Handle without cover
• Move handle to the front side so you can access the screws.
• Remove the screw (01/106) for the cover (01/105) for USB
access.
• Remove the cover for USB access.
• Remove the 12 screws (01/107) and the 4 screws (01/117) of the
electronics of the handle cover.
• Remove the handle cover (01/108).
Picture 2: Handle without cover and electronics
• Remove the 3 fixation screws (01/104) for the electronics (01/
109).
• Position the electronics (01/109) down onto the guide bar (02/
102).
Disconnect ribbon cable of dashboard before moving the electronics.
Lift the lever of the ribbon cable connector to release the ribbon cable.
