Taski swingo 350B - Adjusting of Bowden Cable Wiping Blade

GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-31
Copyright © 2013, Diversey Inc.
05.44.13 base - bowden cable adjustment wiping blade - 350B_350E_V1.00.fm
5.4 Base
5.4.3 Adjusting of bowden cable wiping blade

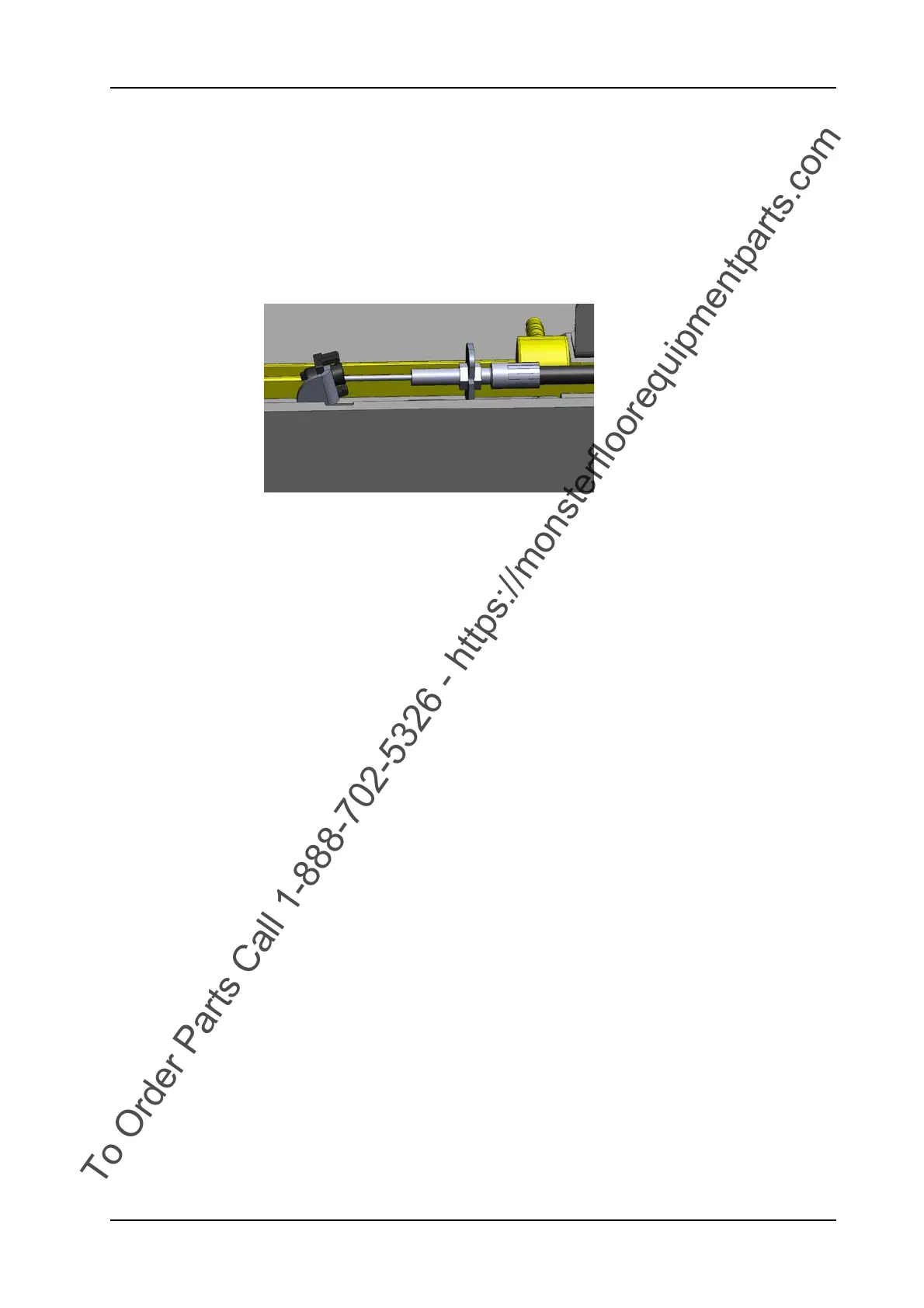

Picture 46: Adjusting bowden cable wiping blade
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Release the counter nut of the bowden cable with a 10mm fork
spanner.
• Adjust the bowden cable with a 10mm fork spanner at the angle
bracket (05/122) situated directly above the wiping blade.
Adjustment
Make sure that the bowden cable is not tensioned to tight. Let the
wiping blade lever have enough play (+/- 1mm).
• Tighten the counter nut.
• Position the recovery tank.
• Position tank cover complete.
