5.2 Guide bar
5.2.11 Mounting of articulation new setup

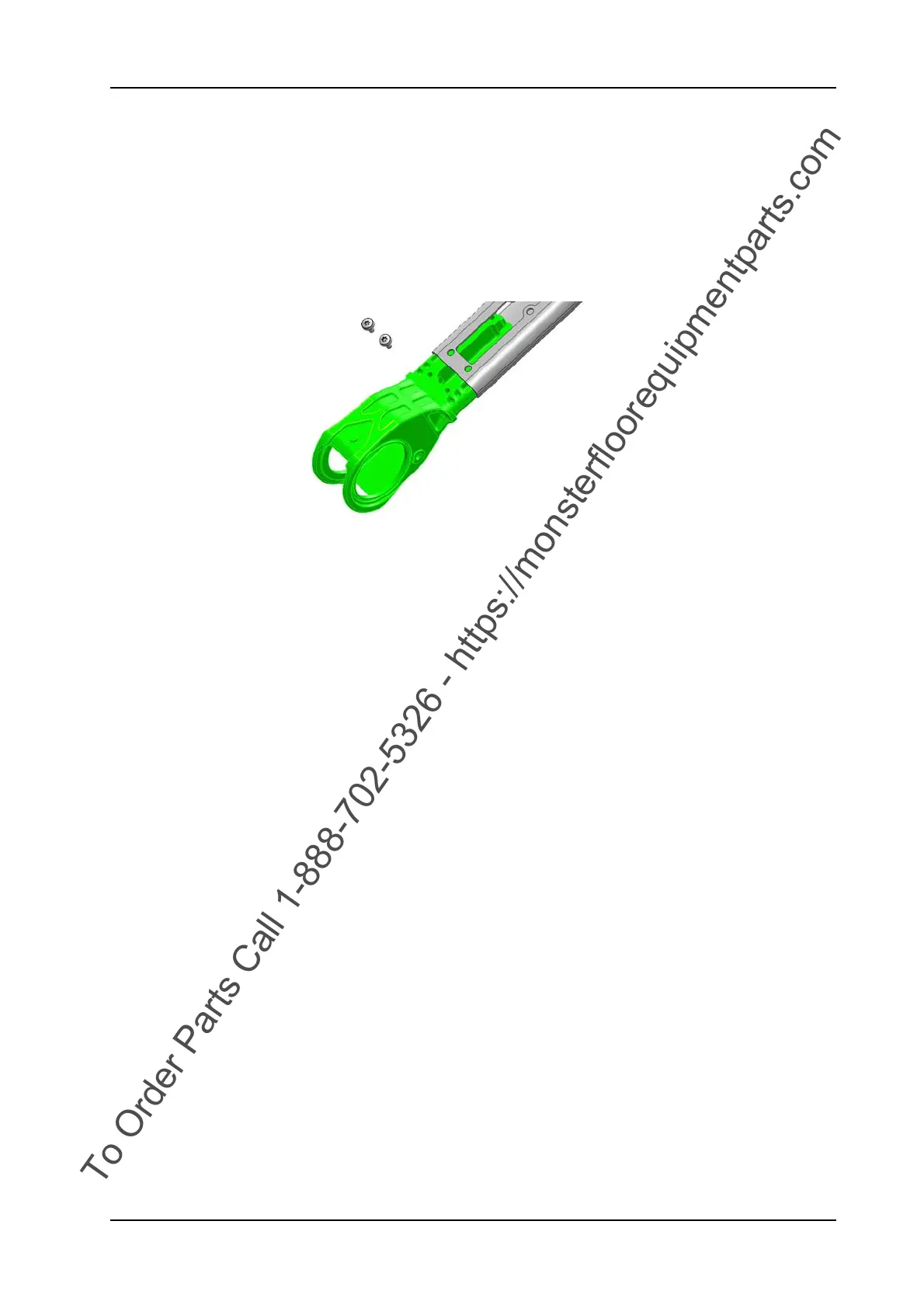

Picture 37: Mount articulation
• Place the articulation into the guide bar.
• Mount the two lower screws.
Adjustment
Do not tighten the screws yet as the cover (02/103) will be placed
later.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
• Complete assembling and adjustment according to chapter
ADJUSTING OF BOWDEN CABLE HANDLE.
