5.7 Brush & Motor
5.7.7 Adjusting of brush height

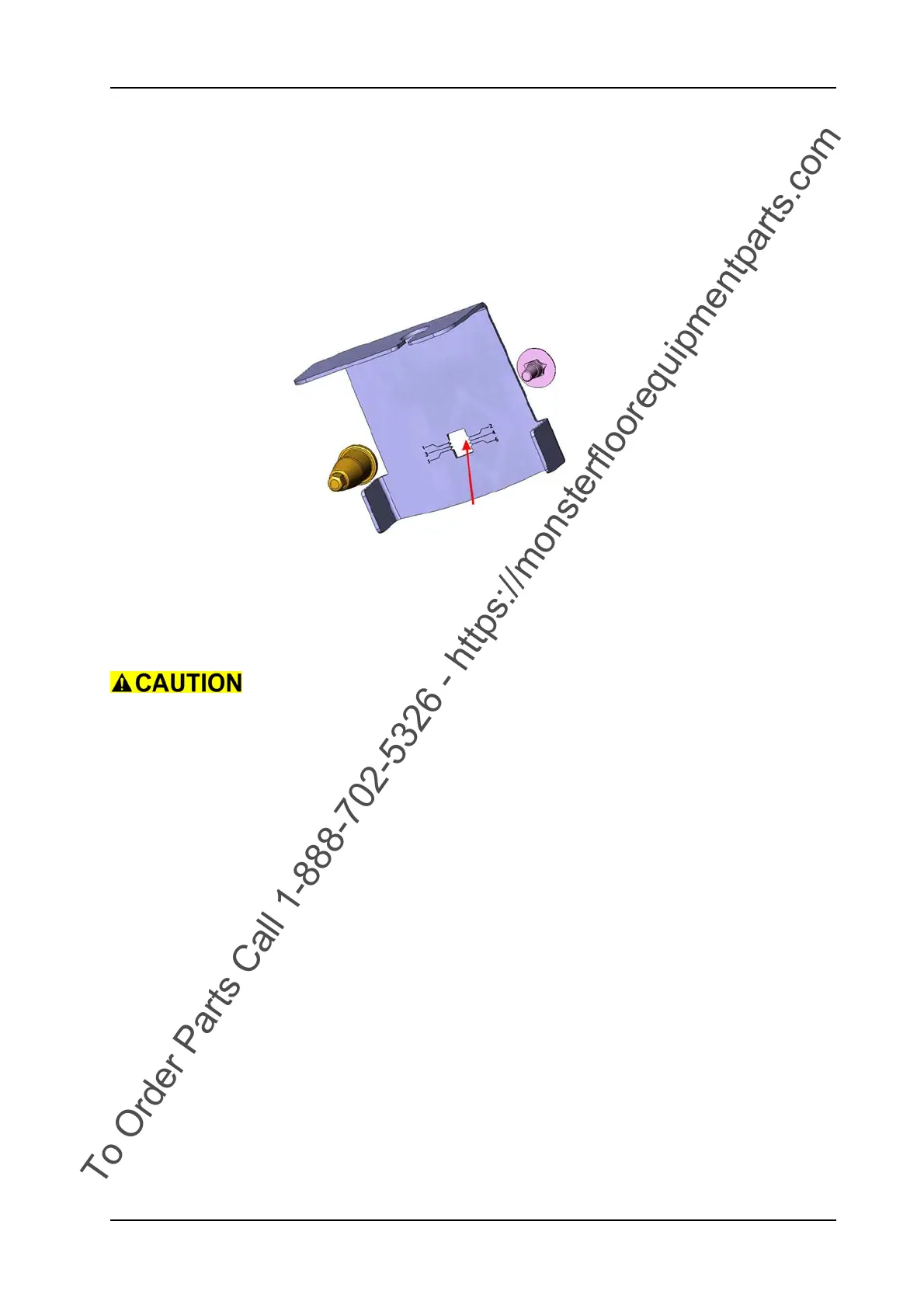

Picture 62: Adjusting brush height
• Remove handle (08/116) for brush holder (08/118).
• Remove brush holder.
• Remove the brush take up from the brush holder with a 8mm
fork spanner/nut.
The brush take up has a left hand thread.
Adjustment
You can vary the height by placing the special screw in the positions
1-6. This could be necessary if the brush is not touching the floor or
wearing uneven.
Leaving the factory it is set to number 2.
• Mount the brush take up onto the special screw.
Service
Apply adhesive locking on the special screw.
• Mount the brush.
• Mount the brush holder.
• Mount the handle for the brush holder.
Remarks
You can only order the whole brush holder (08/118). The adjustment
is set to number 2.
