5.1 Handle
5.1.5 Removing of wiping blade lever

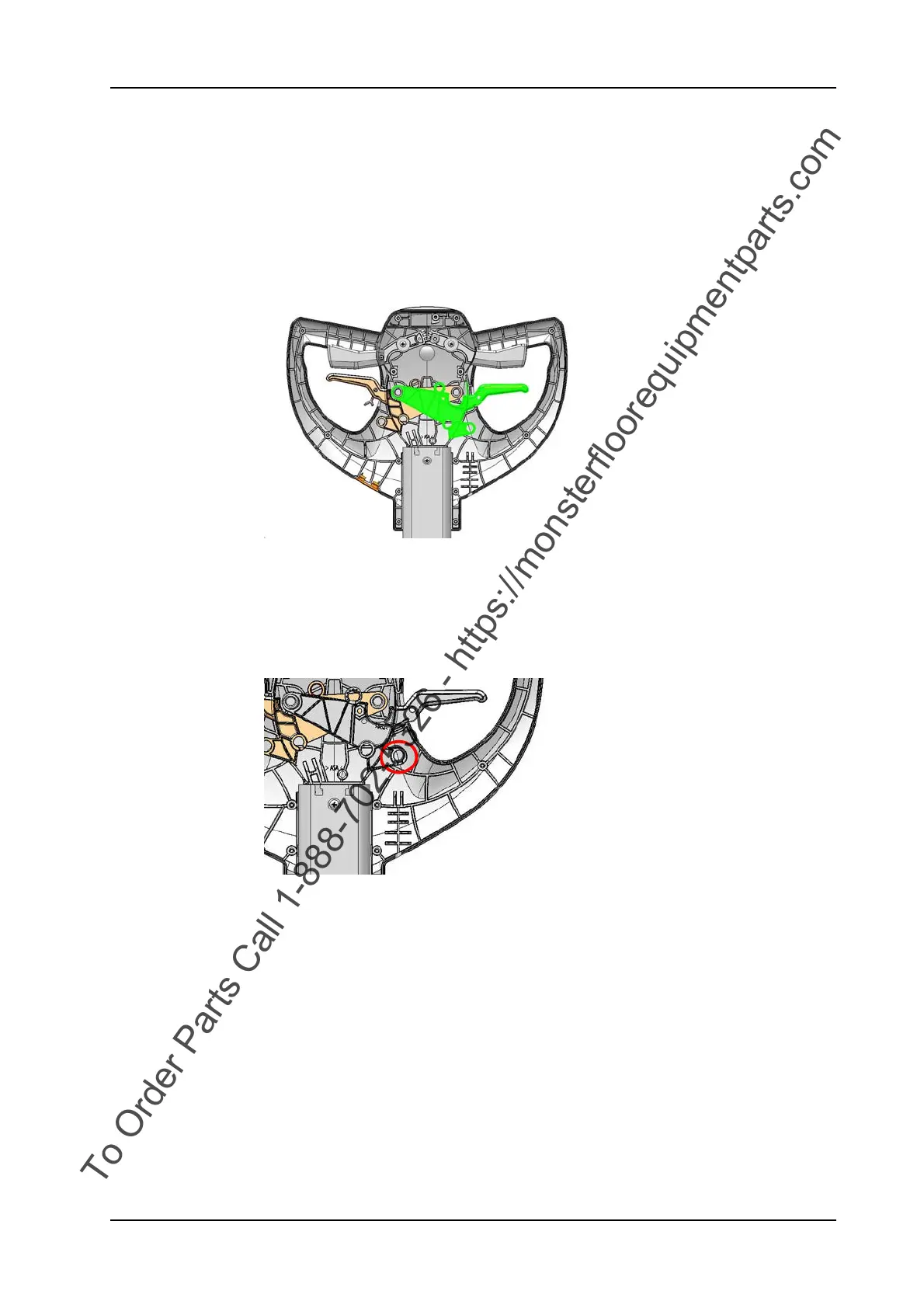

Picture 9: Wiping blade lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the wiping blade lever (01/116).
• Remove the end bolt of the bowden cable (01/119) for wiping
blade.
Picture 10: Wiping blade lever
Remarks
Both levers for handle adjustment and wiping blade are the same
spare part.
