GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-14
Copyright © 2013, Diversey Inc.
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
Service
Lubricate the axle with grease (02/140).
• Mount the retaining washer onto the axle.
• Mount the distance disc between the two toothrockers on the
axle.
Service
Lubricate the toothrockers with grease (02/140).
• Mount the cover onto the articulation.
• Mount the articulation onto bracket.

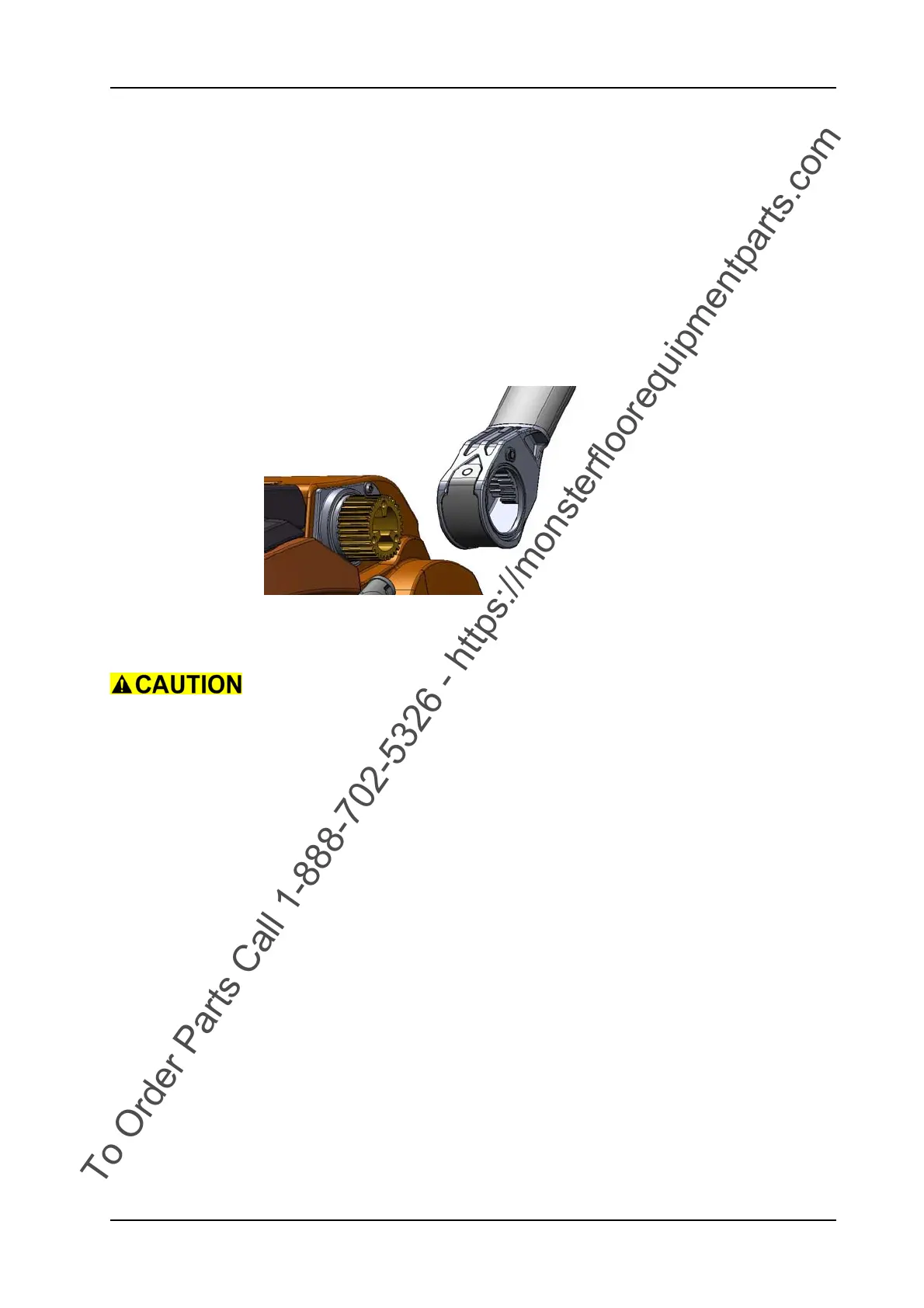

Picture 23: Mount guide bar
• Mount the sustaining disc.
Make sure that the O-rings (02/107) are correct positioned.
• Position the three screws and tighten them.
Adjustment
Tighten the 3 screws with 20 Nm.
• Position the bowden cable into the articulation.
• Complete assembling and adjustment according to chapter
ADJUSTING OF BOWDEN CABLE HANDLE.
