GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-20
Copyright © 2013, Diversey Inc.
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm

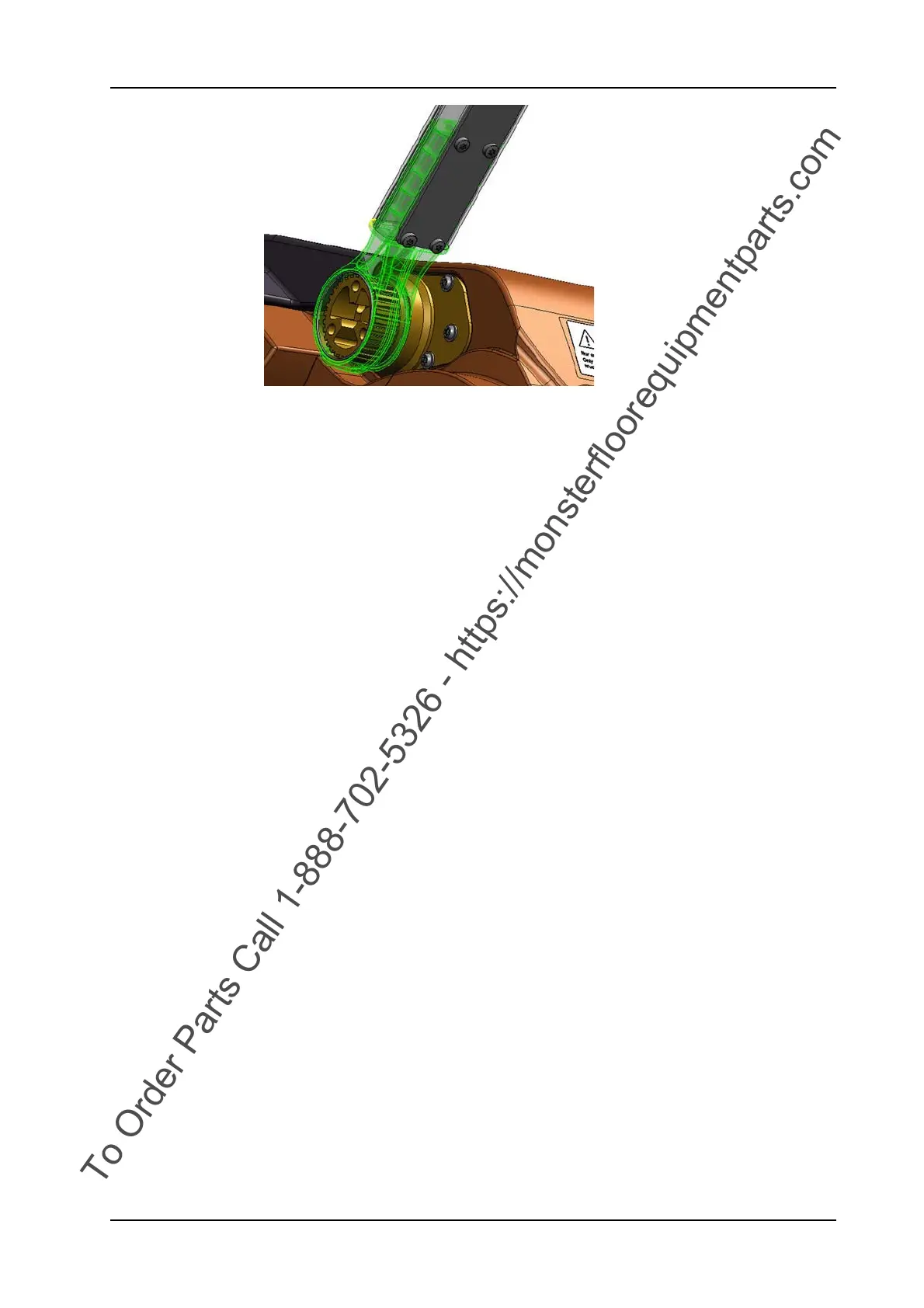

Picture 32: Articulation detail
• Remove articulation (02/113) from bracket (02/112).
• Remove lock of handle position (02/110).
• Remove the two remaining screws (02/104) to release the guide
bar.
• According to what you need to exchange, remove the existing
parts from the articulation and place it on the new one.
