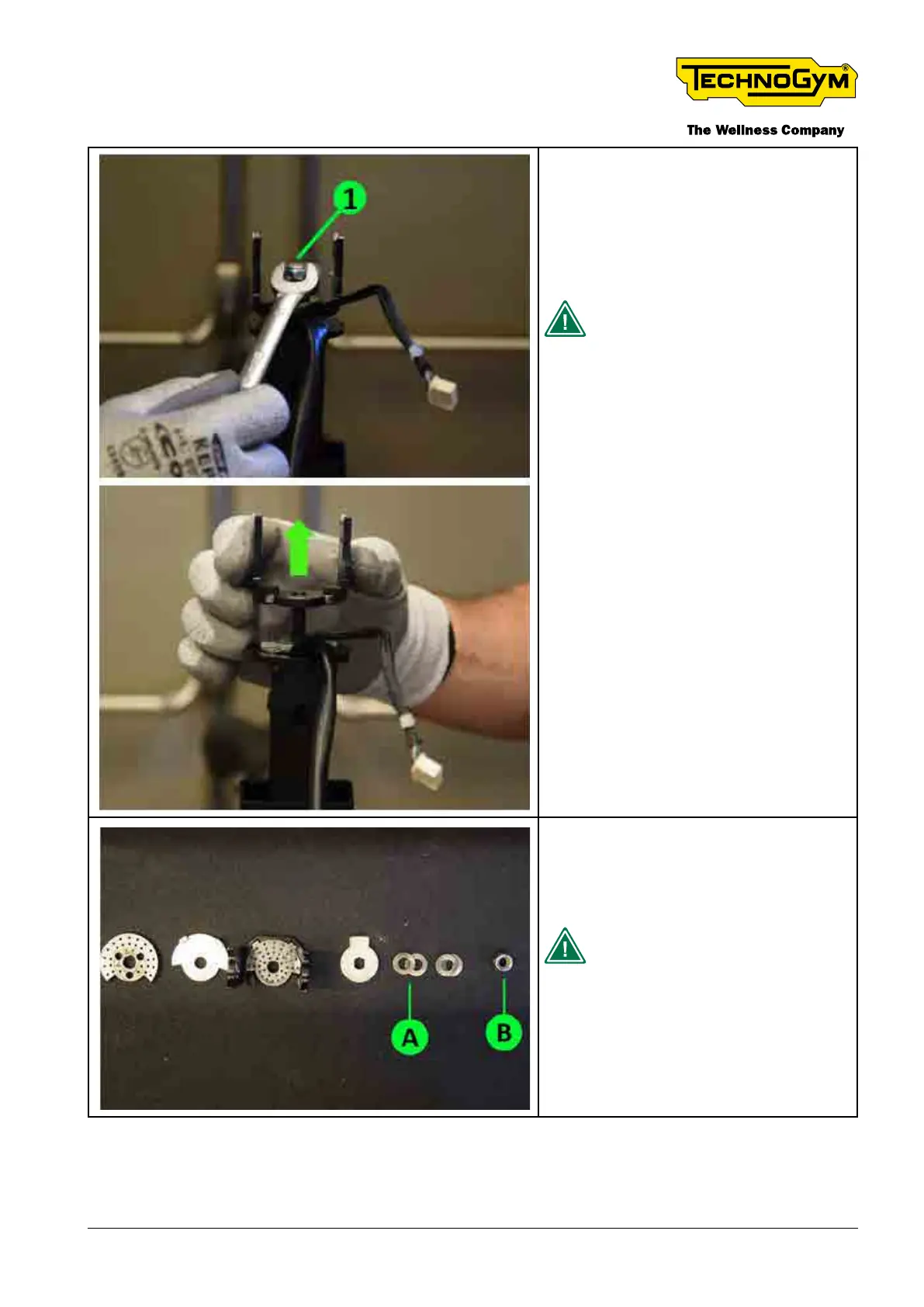

Remove the central nut to disassem-
ble the bracket support for revolving
display, (TOOL: 13 mm hexagon key
wrench).
ATTENTION: REASSEMBLE
WITH A TORQUE OF 3,5 NM -
2,6 LBF.-FT, (TOOL: TORQUE
WRENCH).
During the reassembly procedure, re-
place the self-locking nuts [B].
ATTENTION: NOTE THE
CORRECT SEQUENCE FOR
THE REASSEMBLY PROCE-
DURE.
TECHNOGYM BIKE LIVE Technical Service Guide
