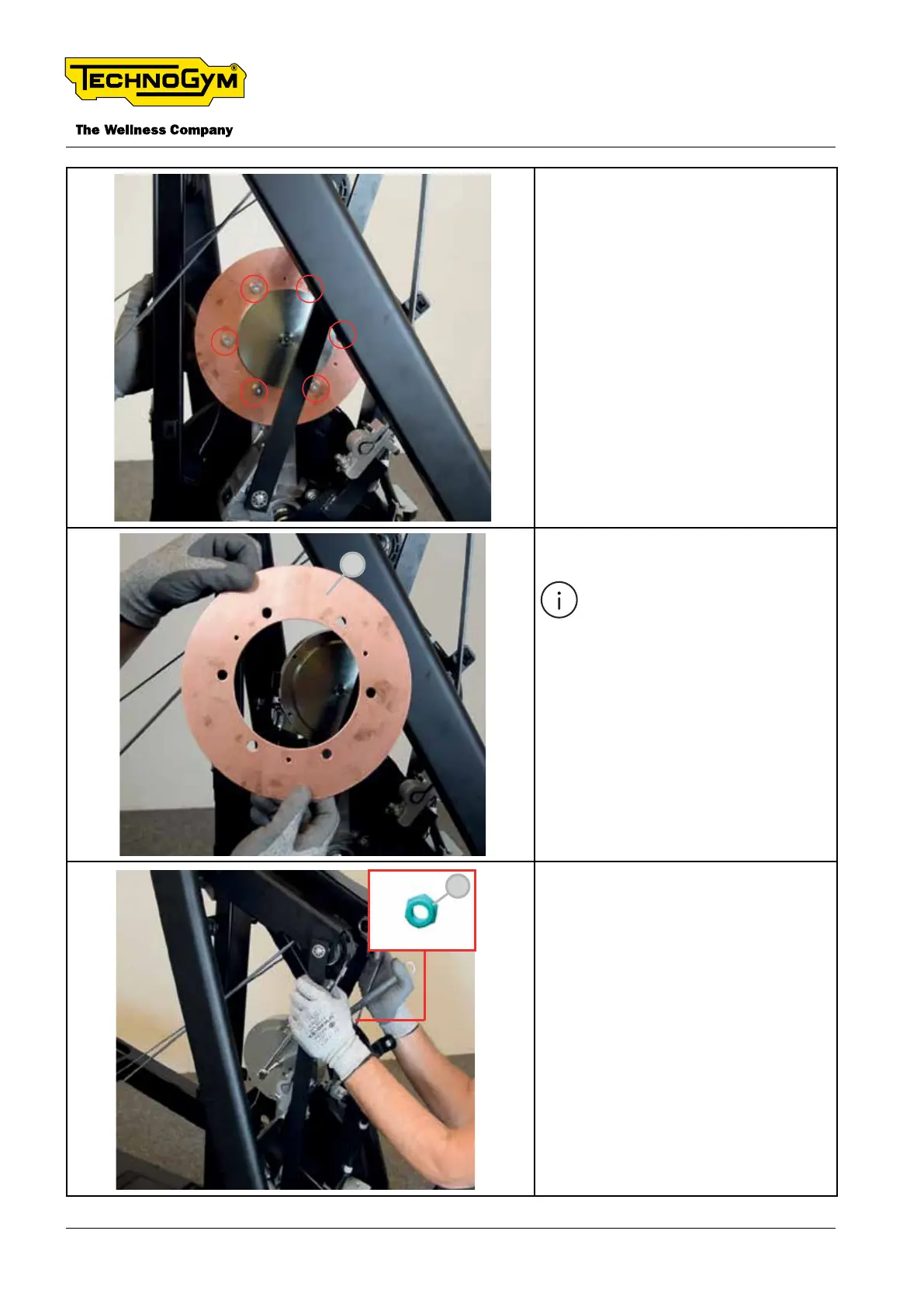

Remove the six screws (highlighted
in red in the gure) with the relative
washers. (TOOL: 4mm hexagon key
wrench)
84
Remove the disk [84] carefully.
During reassembly, if neces-
sary, straighten up the disk
with an hammer turning it
several times up and down
85
Lock the axis of the ywheel with a
8mm hexagon key wrench and re-
move the self-locking nut [85] on the
left side of equipment. (TOOL:17mm
open end wrench)
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 118 -
