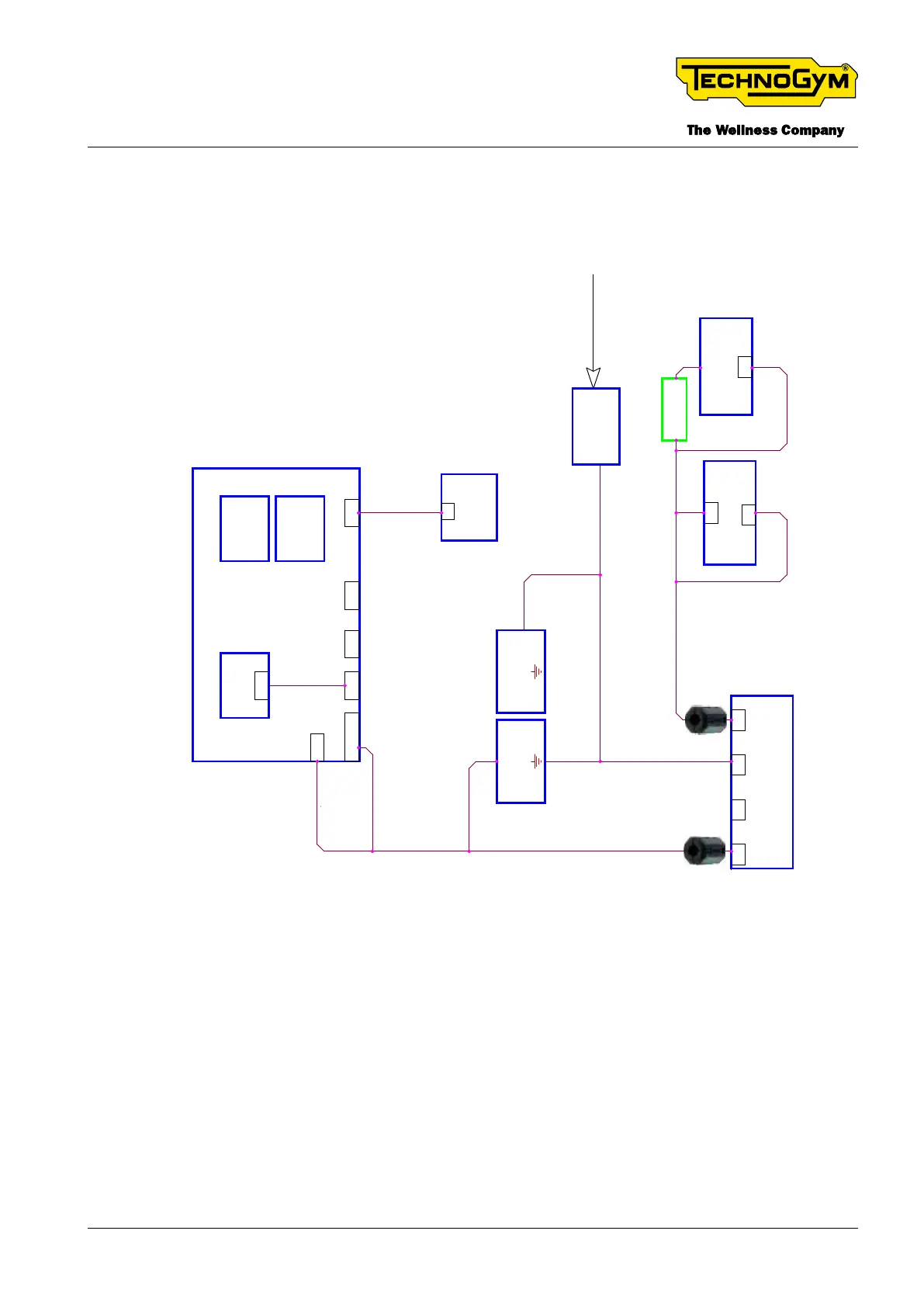

2.10 WIRING DIAGRAM
TECHNOGYM ELLIPTICAL
SET BRAKE BOARD 90W
GROUND NODE (PRIMARY)
0WCU1426xx
ELETTROMAGNET
0WCU1052xx
PASSIVE INDUCTION SENSOR
POWER CABLE
BLOCK DIAGRAM POWERED CODE : DC5A3B0
DISPLAY
GROUND NODE (SECONDARY)
CONN. FLY N°5
USB
BOARD
DISPLAY
BOARD
CONTROL
BOARD
0WCU1423xx
SCHURTER
0WCU1429xx
0WCU1425xx
JOYSTICK
BOARD
SWITCH
FERRITE
FERRITE
Fig. 4
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 15 -
