8

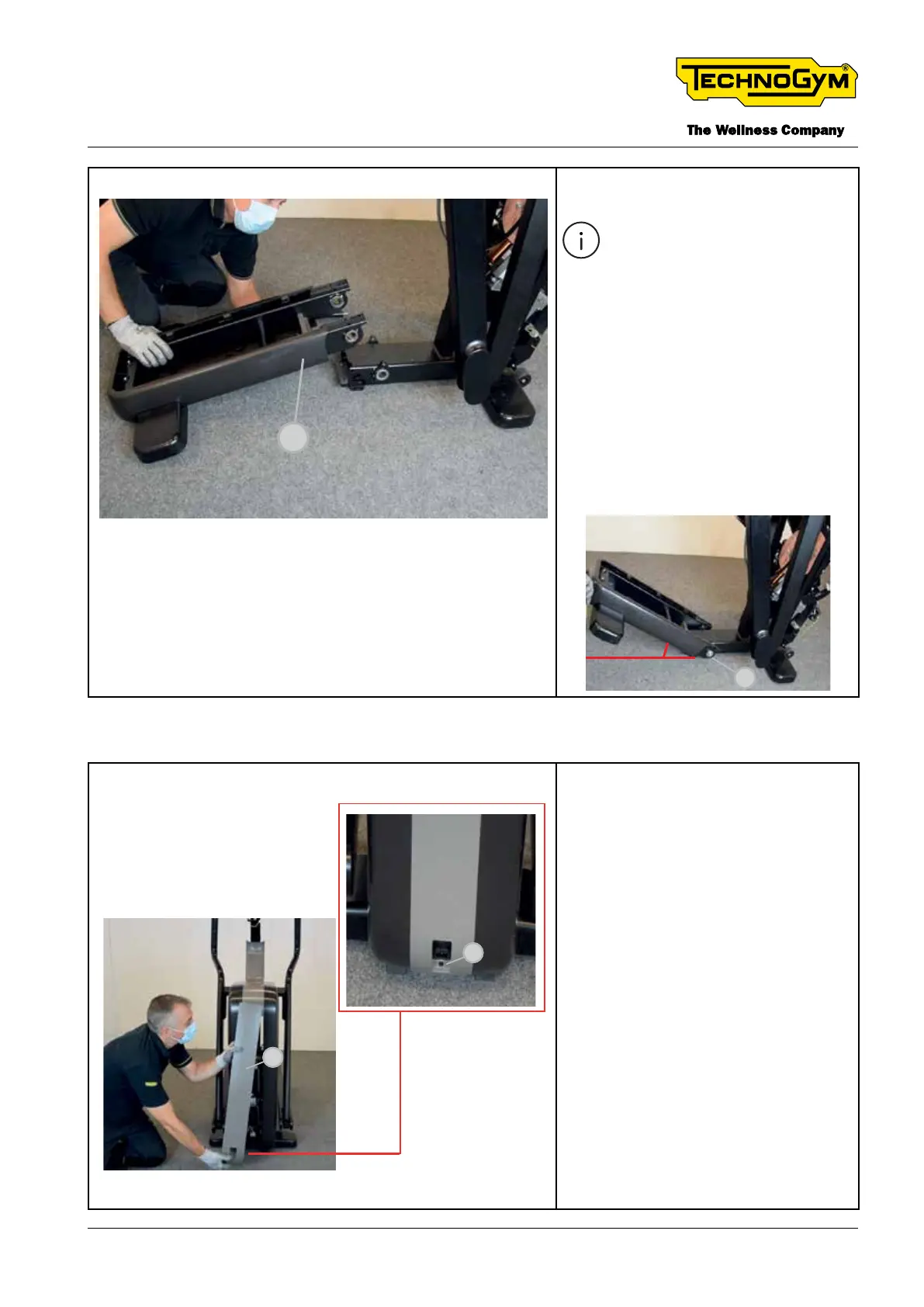

Remove the rear foot assembly [8].
During reassembly, apply
grease MOLYKOTE W2.
Then distribute the grease
raising/lowering the rear foot
assembly. Tighten/loosen the
screw [6] so that the rear foot
assembly goes down when
the angle between the rear
foot and the oor is 15° while
it does not go down to the an-
gle of 45°. (TOOL: Measuring
tape)
6
7.20 DISASSEMBLING THE SWITCH BOX
22
23
Remove the screw [22] . (TOOL:
3mm hexagon key wrench).
Then remove the casing [23].
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 129 -
