Technogym ELLIPTICAL - Disassembling the Brake Board

9

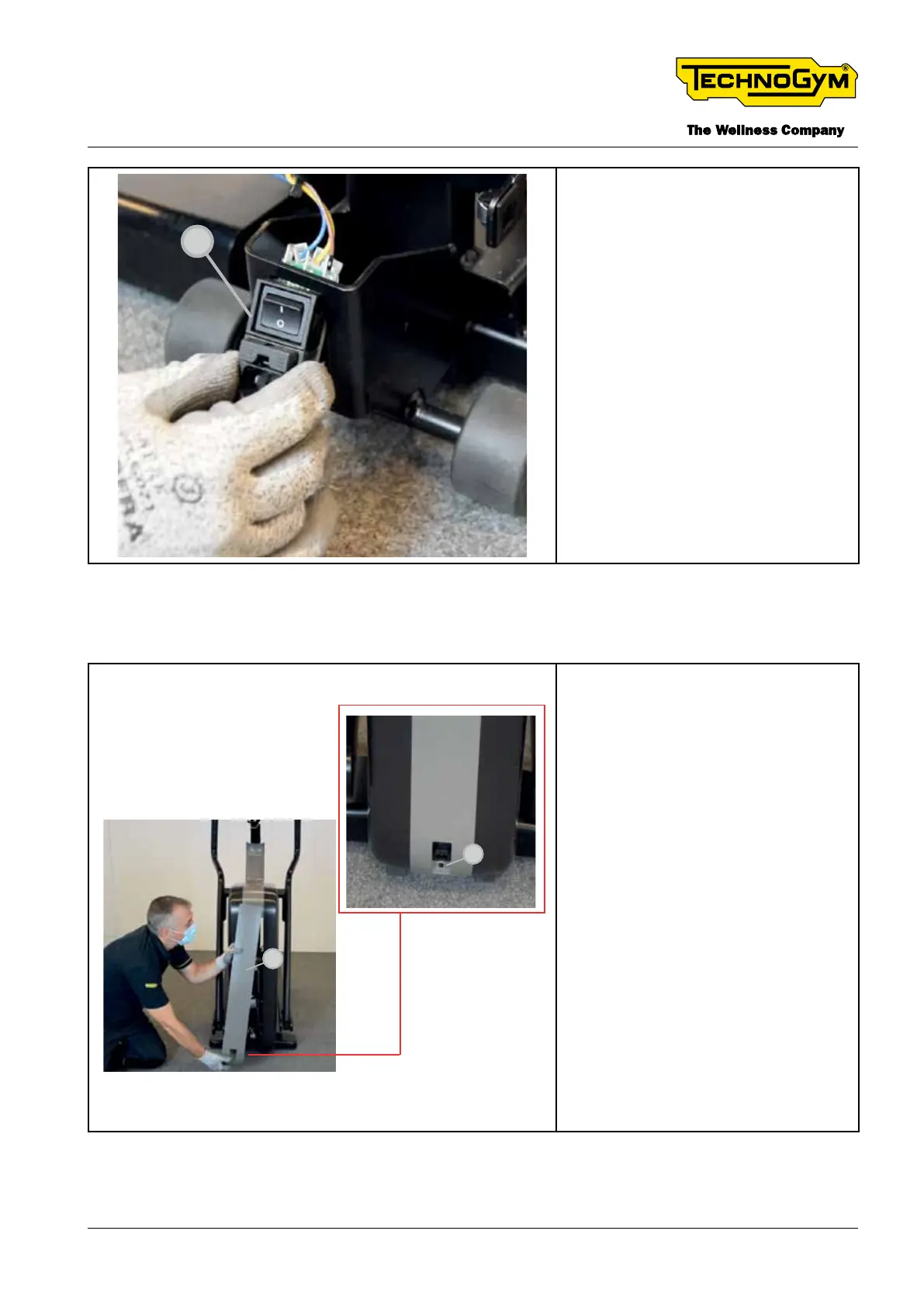

Remove the switch box [9] from the
equipment.
7.21 DISASSEMBLING THE BRAKE BOARD
22
23
Remove the screw [22] . (TOOL:
3mm hexagon key wrench).
Then remove the casing [23].
