Technogym ELLIPTICAL - Disassembling the Front Casings

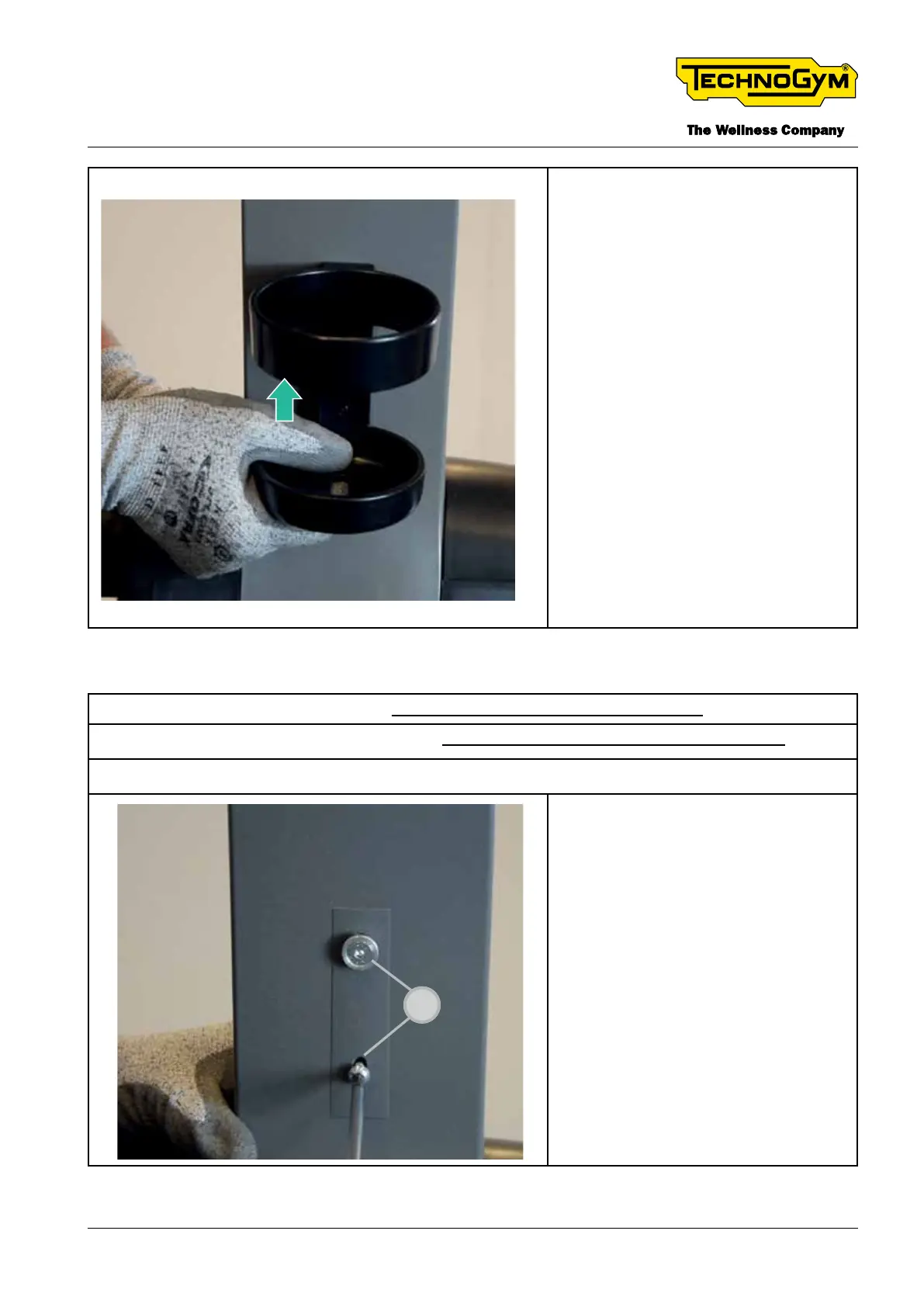

Lift and extract the bottle holder.
7.9 DISASSEMBLING THE FRONT CASINGS
Remove the display as described in § “7.4 DISASSEMBLING THE DISPLAY”
Remove the joystick cable as described in §”7.5 DISASSEMBLING JOYSTICK CABLE”
Remove the bottle holder as described in § “7.8 DISASSEMBLING BOTTLE HOLDER”
15
Remove the two screws [15]. (TOOL:
4 mm hexagon key wrench)
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 71 -
Uncontrolled copy if printed
