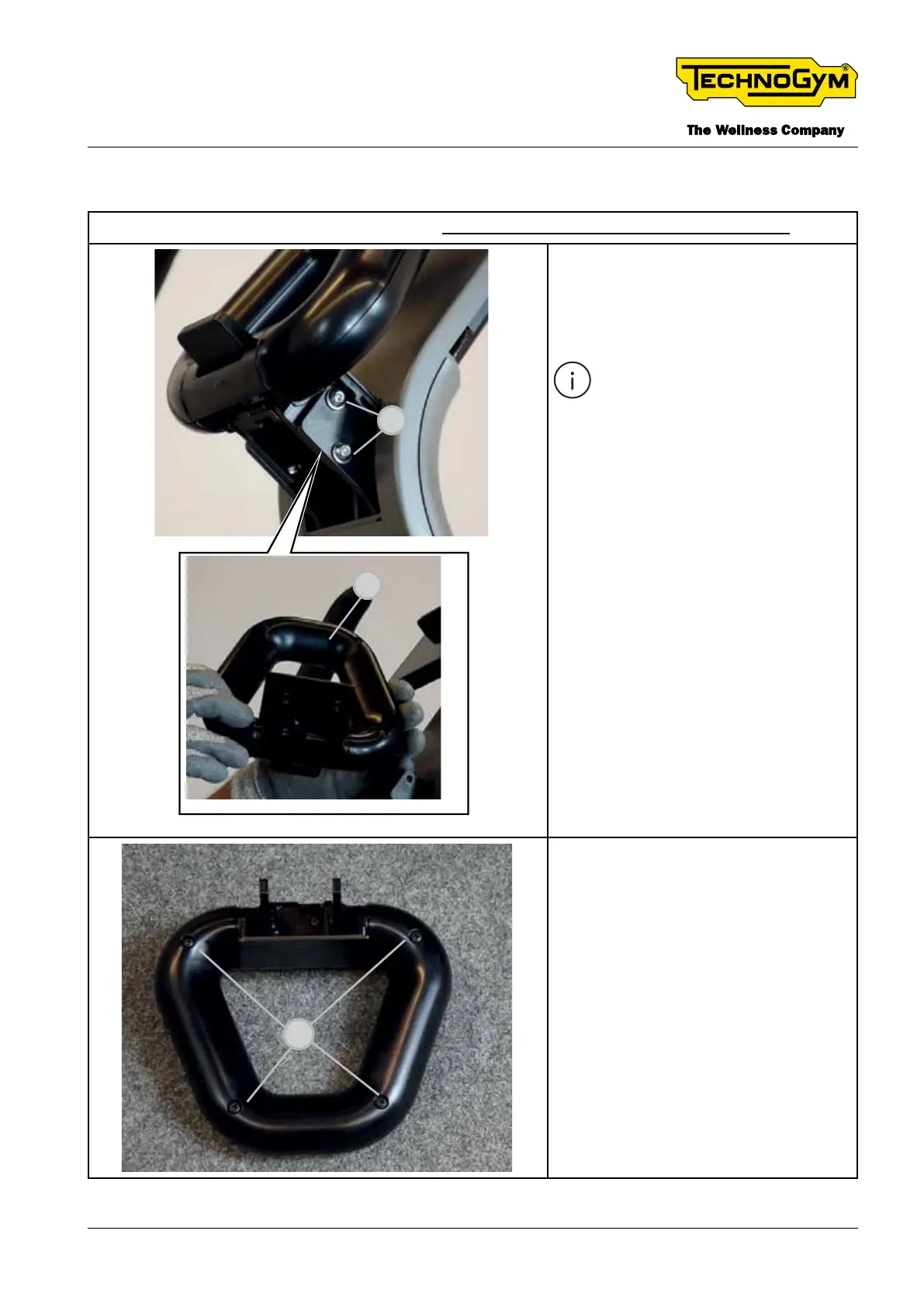

7.6 DISASSEMBLING THE JOYSTICK
Remove the joystick cable as described in § “7.5 DISASSEMBLING JOYSTICK CABLE”
9
8
Remove the two screws [8] from each
side of equipment (TOOL: 4 mm hex-
agon key wrench) and disassemble
the central handle grip [9].
During reassembly, tighten
the screws [8] with a torque
wrench set to 9 Nm [6.6 lbf-ft].
10
Remove the four screws [10]. (TOOL:
Medium Phillips screwdriver)
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 67 -
