8. TIGHTENING TORQUES - GREASE -
ADHESIVE & SEALANTS - BELT TENSIONING
- ADJUSTMENTS
8.1 POLY-V BELT TENSIONING (LEFT SIDE)
First Installation : If the belt is replaced with a new one, tension the new belt to the frequency: 190
+ 10 Hz.
If the belt is loosened / removed and then the same one is reassembled: tension the belt to the
frequency: 160 + 10 Hz.
(TOOL: TEN-SIT Belt Tension Meter or EASY TENSION Application only if installed on iOS Devic-
es (with externally connected microphone))

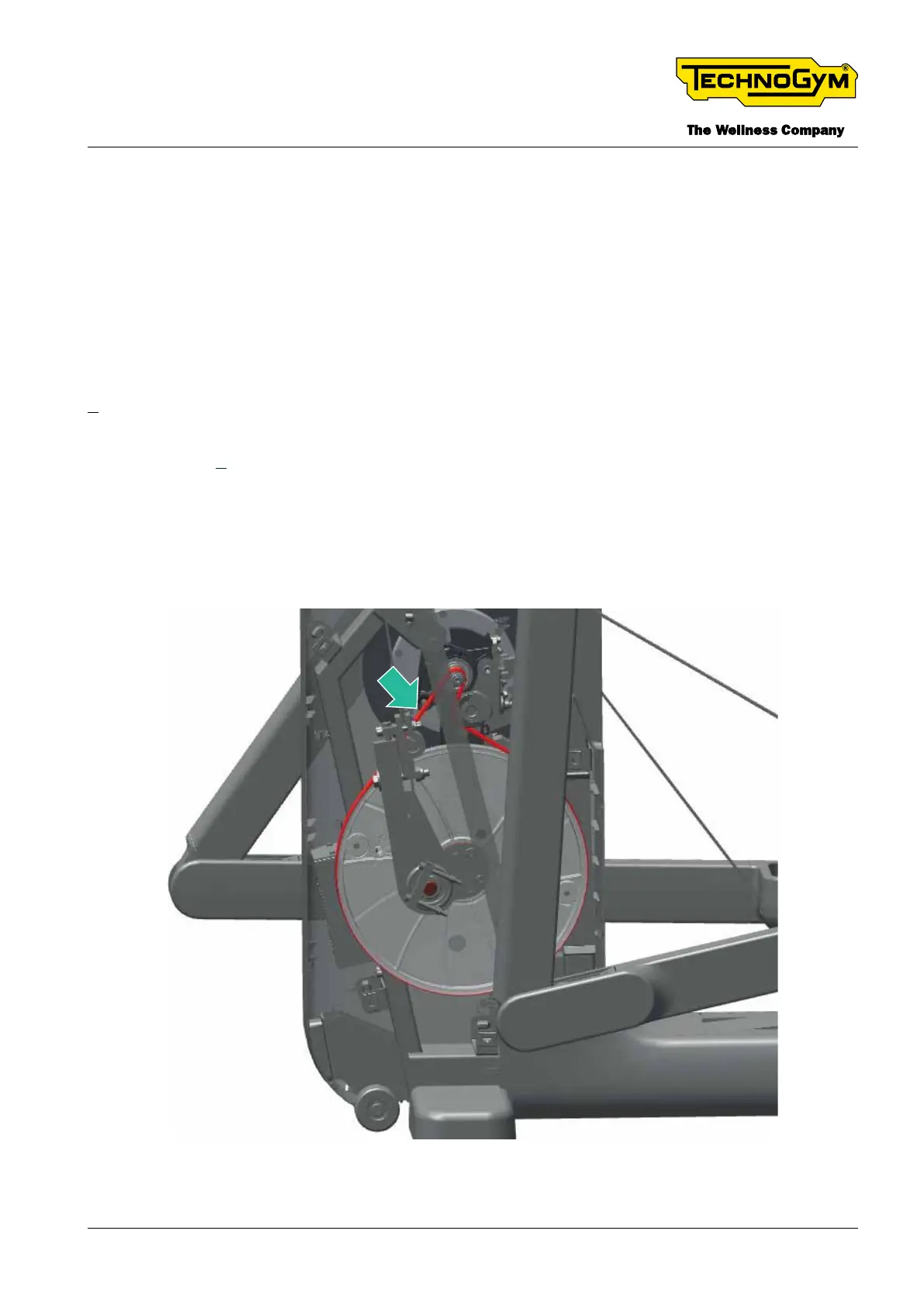

The arrow below indicates the reference of where the frequency must be measured.
Fig. 36
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 133 -
Uncontrolled copy if printed
