7.17 DISASSEMBLING THE FLYWHEEL
Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT
CASINGS”
Loosen the belt tensioner. For details, see §”7.15 DISASSEMBLING BELT TENSIONER”
72

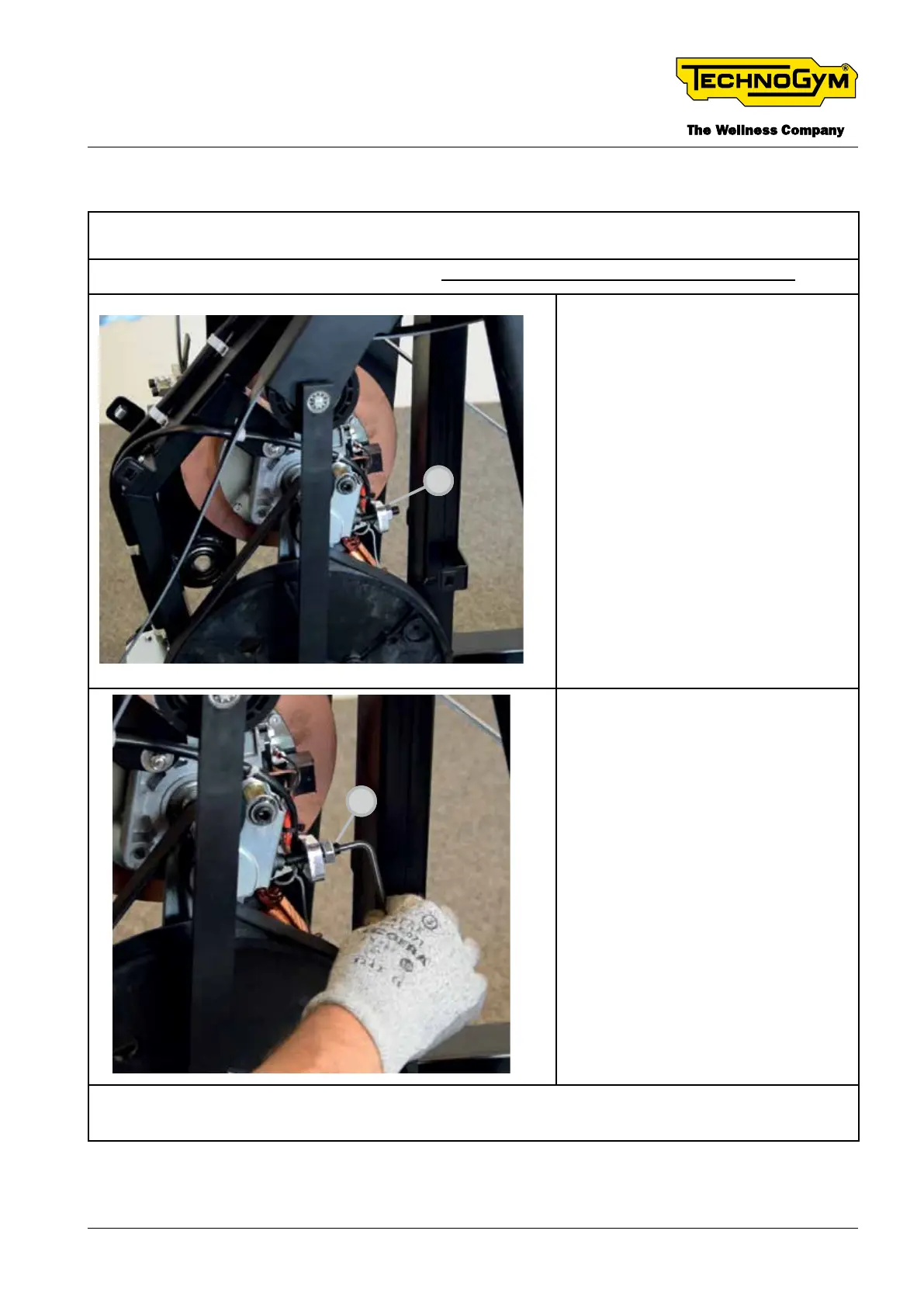

Loosen the nut [72]. (TOOL: 17mm
open end wrench)
73
Loosen the screw [73]. (TOOL: 5 mm
hexagon key wrench)
Remove the electromagnetic brake. For details, see §”7.16 DISASSEMBLING THE ELECTRO-
MAGNETIC BRAKE”
