Technogym ELLIPTICAL - Crank Assembly

8.5 CRANK ASSEMBLY
1F
1C
1E
1D
1B
1A
1F
1E
1D

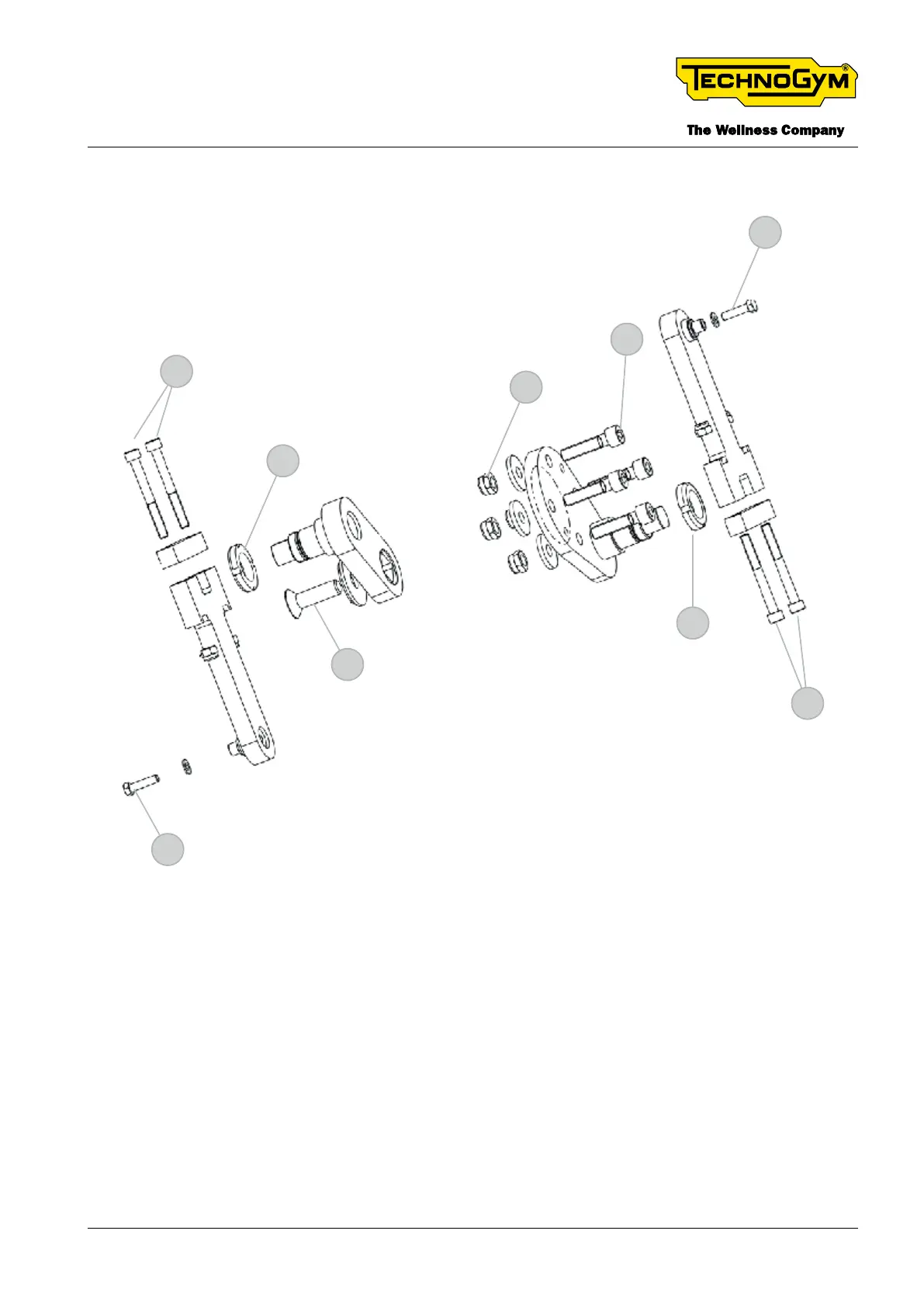

Fig. 41
During the reassembly procedure apply Loctite 243 on the four screws [A]. Afterwards, tighten the
screws with a tightening torque of 38 Nm [ 28 lbf-ft].
TIGHTENING TORQUE of the four nuts [B]: 10 Nm [7.4 lbf-ft].
During the reassembly procedure apply Loctite 243 on the screw [C]. Afterwards, tighten the screw
with a tightening torque of 44 Nm [ 32.5 lbf-ft].
During the reassembly procedure apply Loctite 243 on the ring nut [D]. Afterwards, tighten the ring
nut with a tightening torque of 60Nm [ 44.3 lbf-ft].
TIGHTENING TORQUE of the screws [E]: 16 Nm [11.8 lbf-ft].
TIGHTENING TORQUE of the screws [F]: 5 Nm [3.7 lbf-ft].
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 137 -
Uncontrolled copy if printed
