Technogym ELLIPTICAL - Disassembling the Belt of the Pedal Lever

7.12 DISASSEMBLING THE BELT OF THE PEDAL LEVER

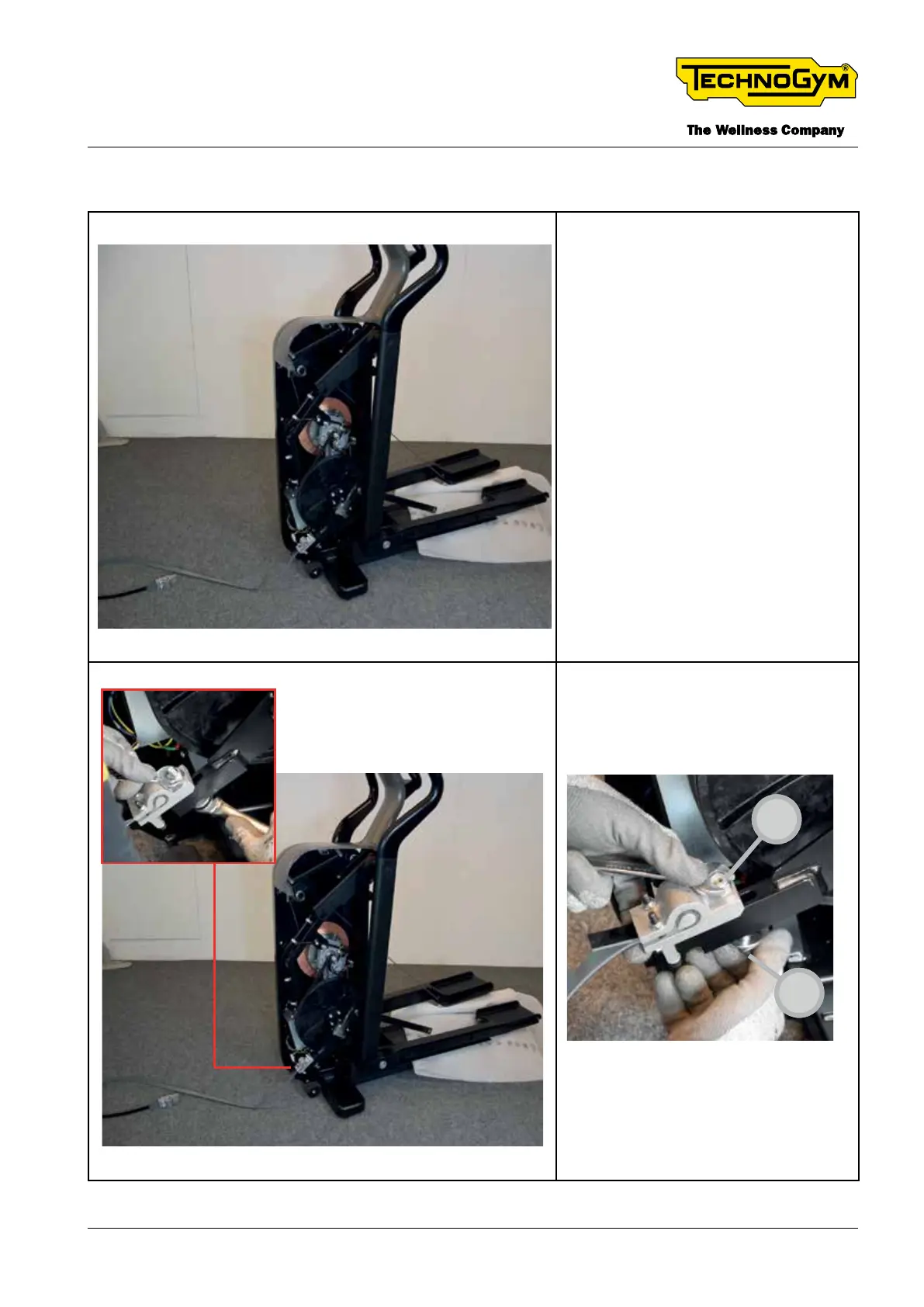

Remove all the necessary front cas-
ings as shown in the gure. For de-
tails see §”7.9 DISASSEMBLING
THE FRONT CASINGS”
Perform all the necessary steps to
remove the belt assembly under the
pedal. For details see §”7.10 DISAS-
SEMBLING THE PEDAL ASSEM-
BLY”
Perform all the necessary steps to re-
move the rod and the pulley. For de-
tails see § “7.11 DISASSEMBLING
THE RIGHT/LEFT ARM LEVER”
Remove the screw [55] and the nut
[56]. (TOOL: 2x17mm open end
wrench).
55
56
