157

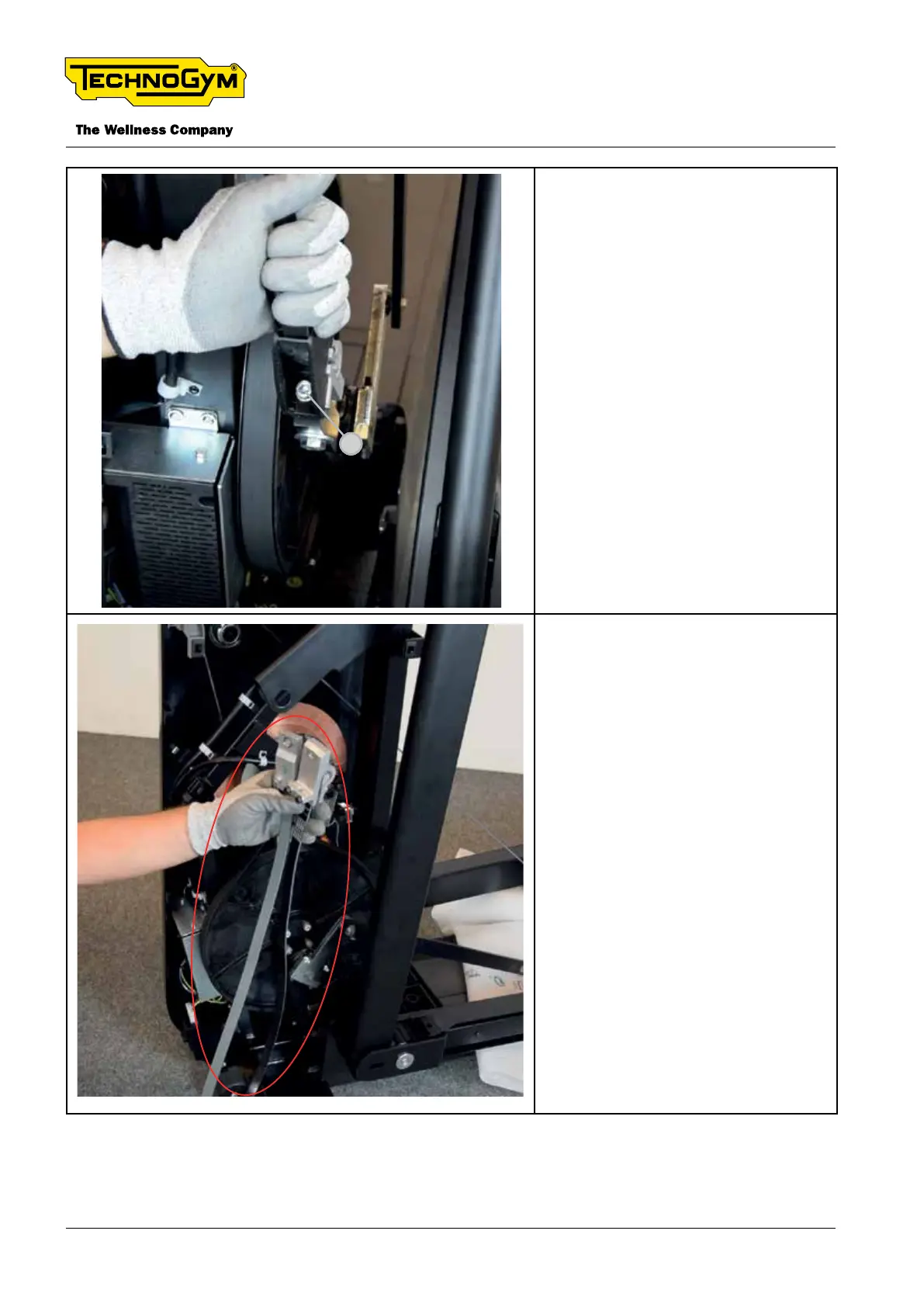

Remove the screw [57]. (TOOL: 6mm

hexagon key wrench)

It’s now possible to remove the belt

of the pedal lever.

TECHNOGYM ELLIPTICAL Technical Service Guide

Rev. 1.1

- 92 -

Uncontrolled copy if printed Uncontrolled copy if printed
