Technogym ELLIPTICAL - Disassembling the Connecting Pin between the Rear Foot Assembly and the Frame

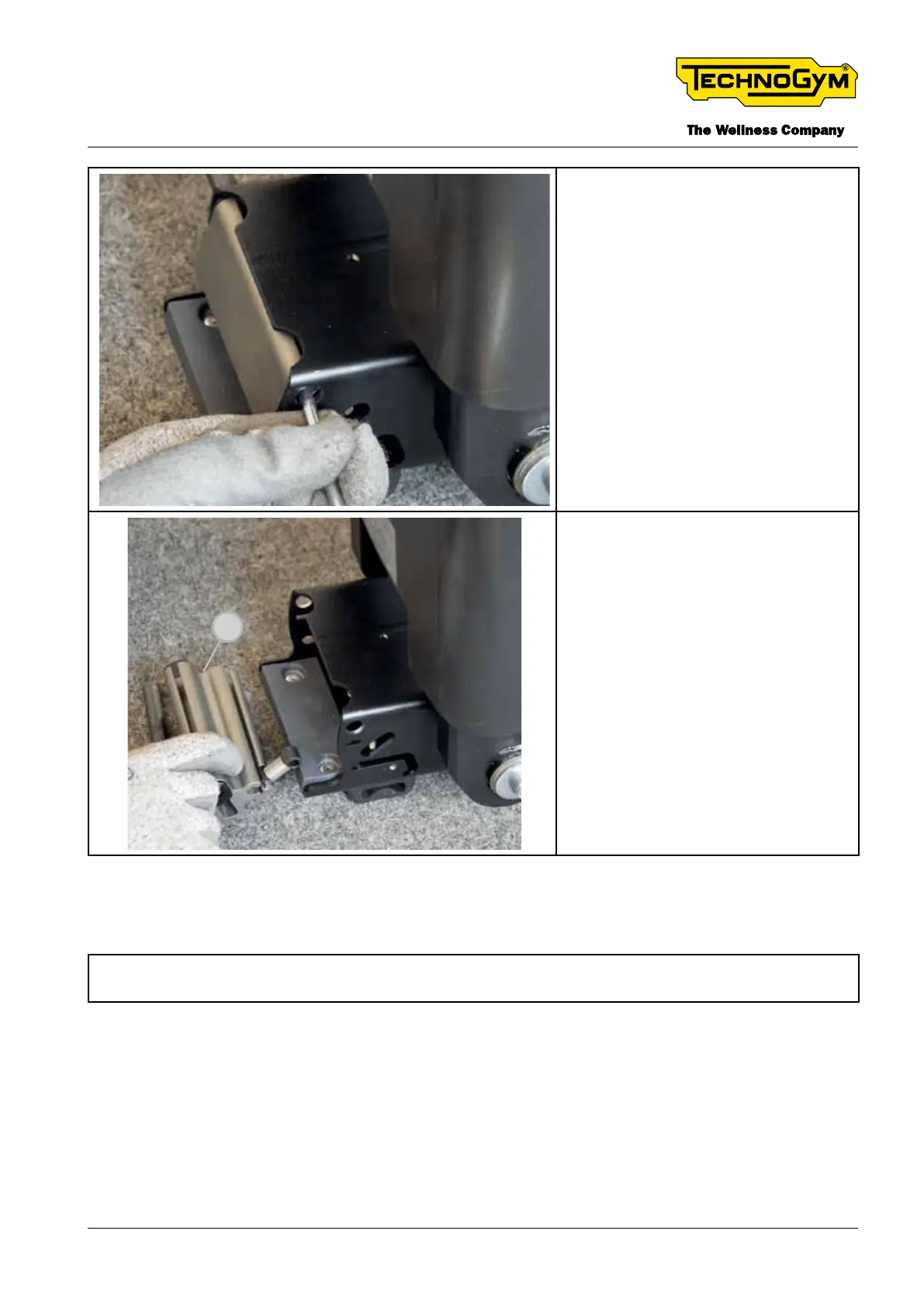

4
Remove the pin [4]. (TOOL: ham-
mer+slotted screwdriver/pin previ-
ously removed [3])
5
Remove the locking/unlocking sys-
tem [5].
7.19 DISASSEMBLING THE CONNECTING PIN BETWEEN
THE REAR FOOT ASSEMBLY AND THE FRAME
Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT
CASINGS”
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 125 -
Uncontrolled copy if printed
