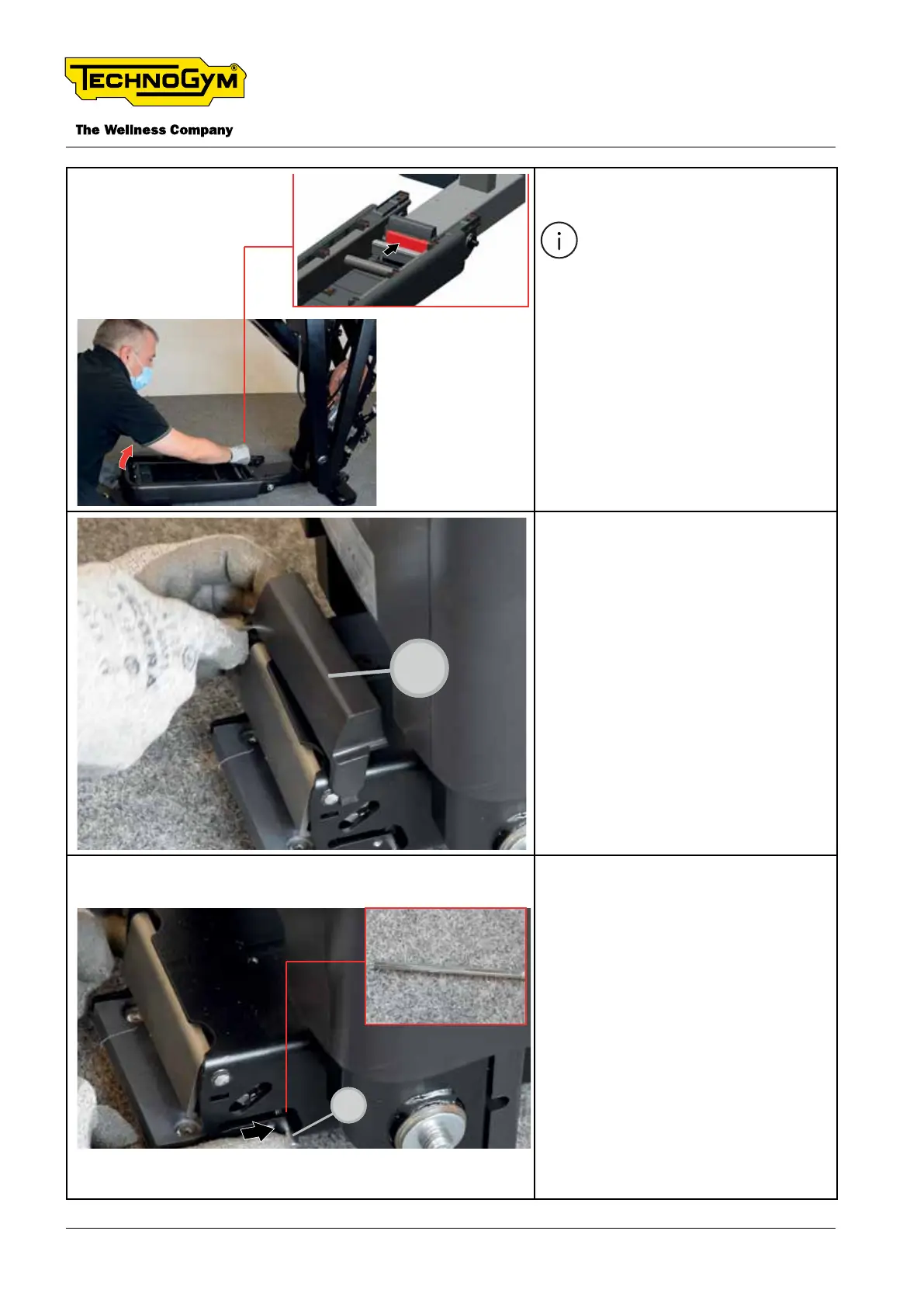

Lift the rear foot assembly.
To raise the rear foot assem-
bly up without the regulation
system, push the component
highlighted in red in the gure
using a slotted screwdriver.
2
Remove the casing [2]. (TOOL: slot-
ted screwdriver).
3
Push the pin [3] as indicated by the
arrow to unhook it.
Then remove the pin.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 124 -
