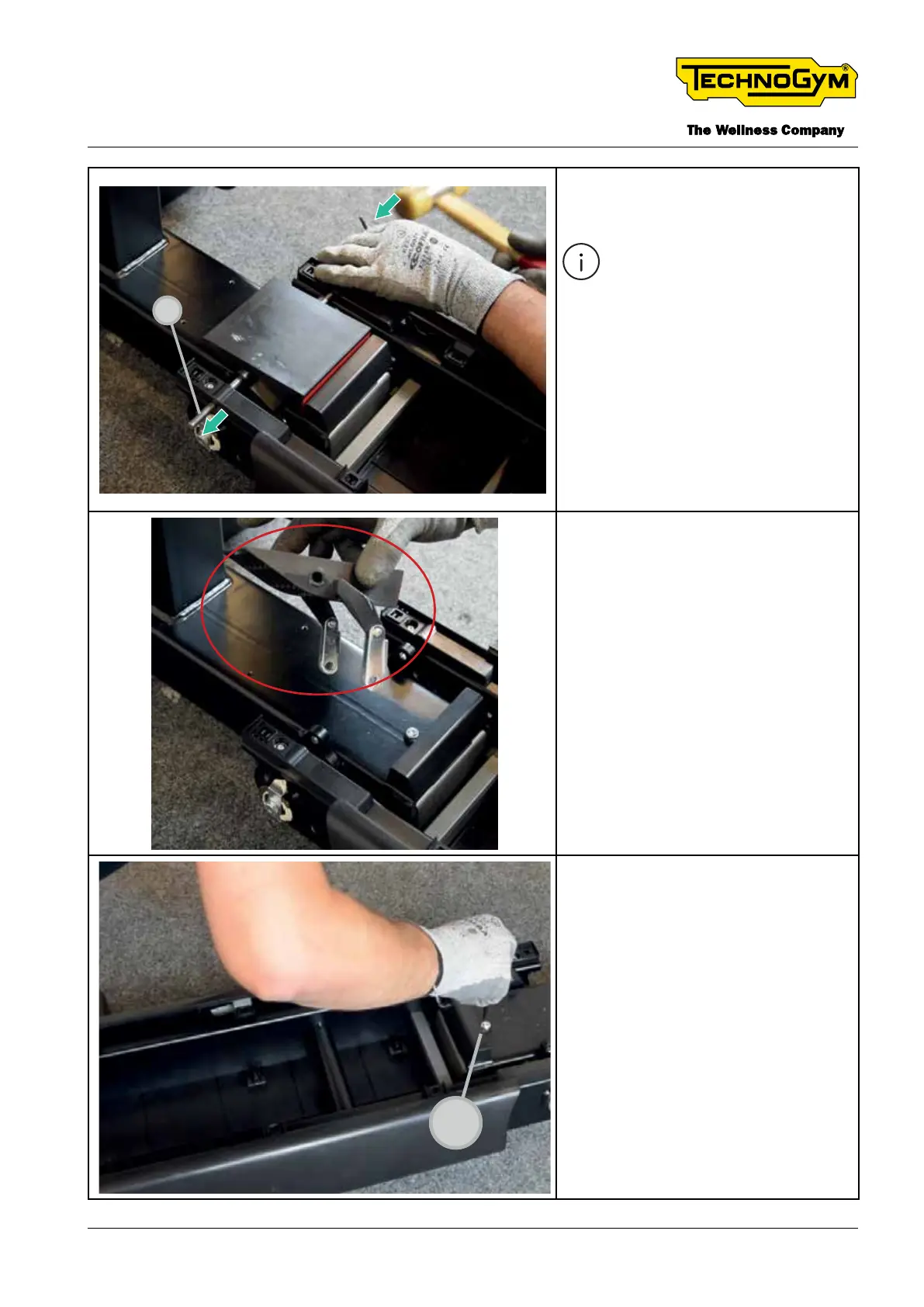

Remove the pin [99]. (TOOL: slotted
screwdriver).
During reassembly, apply
grease on the pin.
Remove the regulation system as
shown in the gure.
1
Remove the screw [1]. (TOOL: key
wrench for Torx T25 head screw)
