Technogym ELLIPTICAL - Disassembling the Pedal Assembly

28

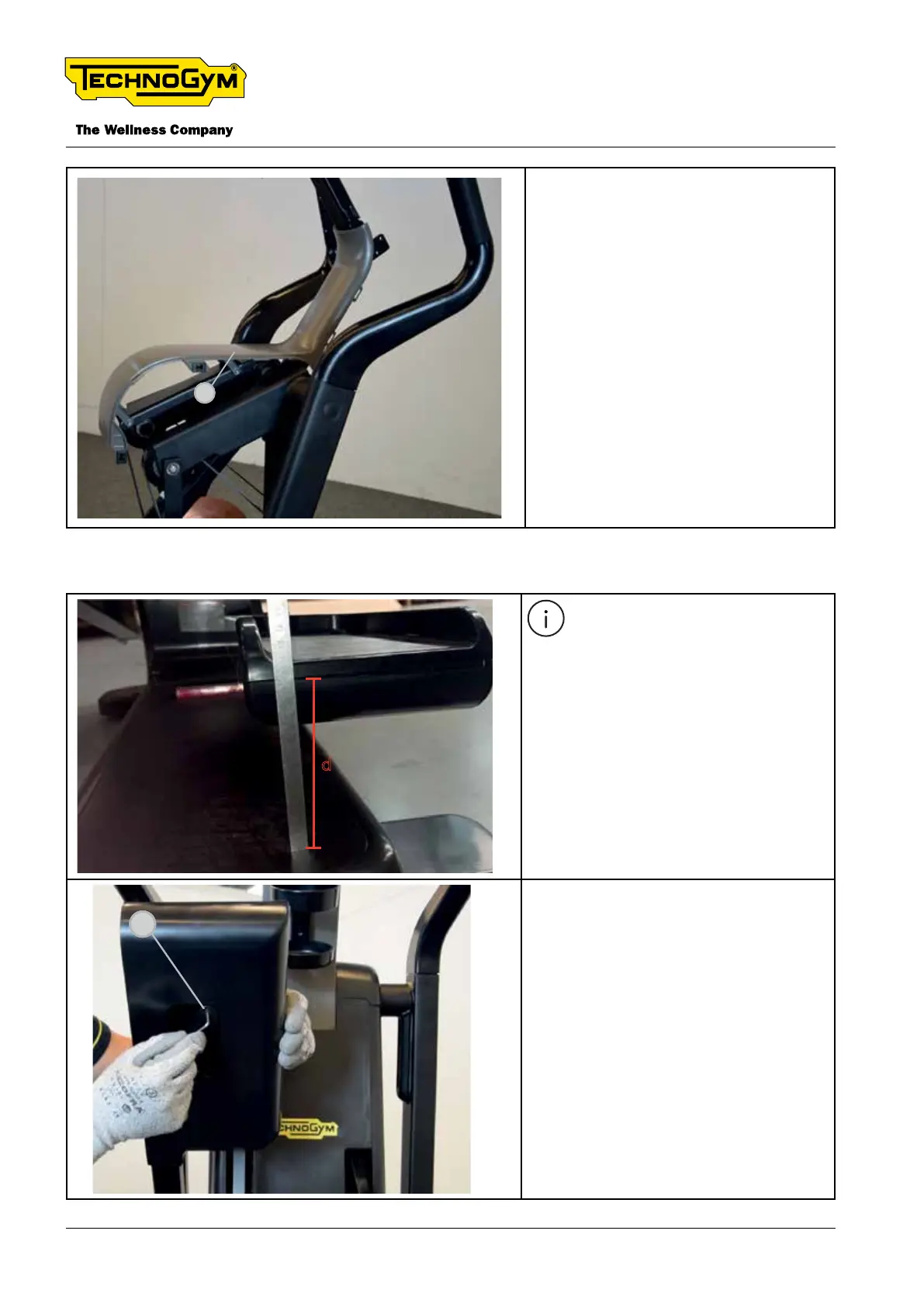

It’s now possible to remove the casing
[28].
7.10 DISASSEMBLING THE PEDAL ASSEMBLY
d
Before disassembling, bring the
pedal to the lowest position and take
the distance (d) between the pedal cut
and the rear foot casing as shown in
the gure. The distance “d” should be
equal to 127mm. (TOOL: Measuring
tape)
32
Raise up the lever of the pedal and
remove the screw [32]. (TOOL: 3mm
hexagon key wrench).
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 78 -
