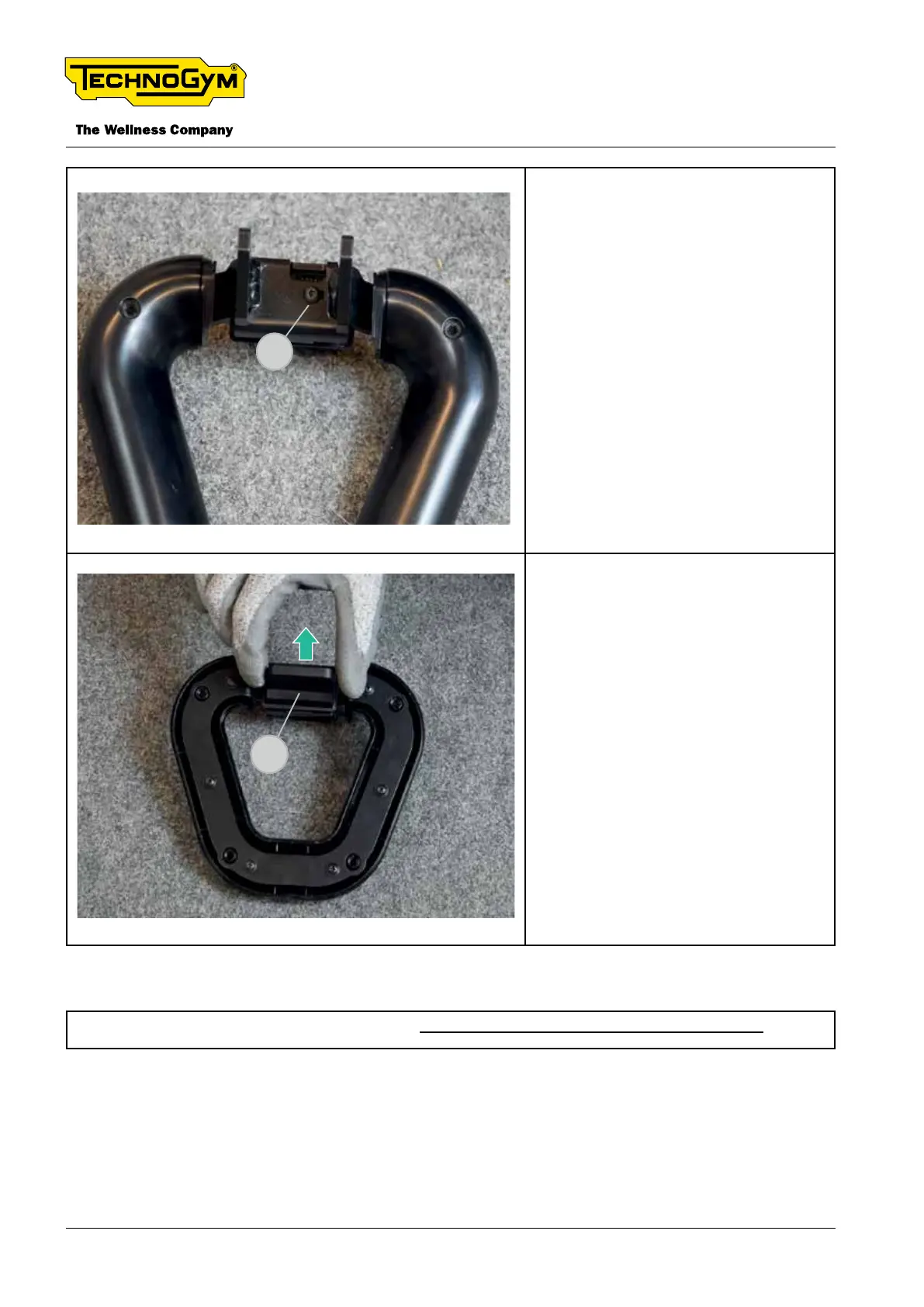

Technogym ELLIPTICAL - Disassembling the Central Handle Grip

11
Remove the screw [11]. (TOOL: 2.5
mm hexagon key wrench)
12
It’s now possible to remove the joy-
stick [12].
7.7 DISASSEMBLING THE CENTRAL HANDLE GRIP
Remove the joystick cable as described in §”7.5 DISASSEMBLING JOYSTICK CABLE”
