_Tighten the nut [72]. (TOOL: 17mm open end wrench).
_Reassemble the belt assembly and the rod. Then adjust the belt, loosening/tightening the screw
[57] (TOOL: 6mm hexagon key wrench) until the measure between the pedal cut and the casing
is equal to “d” (127mm) (TOOL: Measuring tape)
_Tighten the screw [55]. (TOOL: 2x17mm open end wrench).

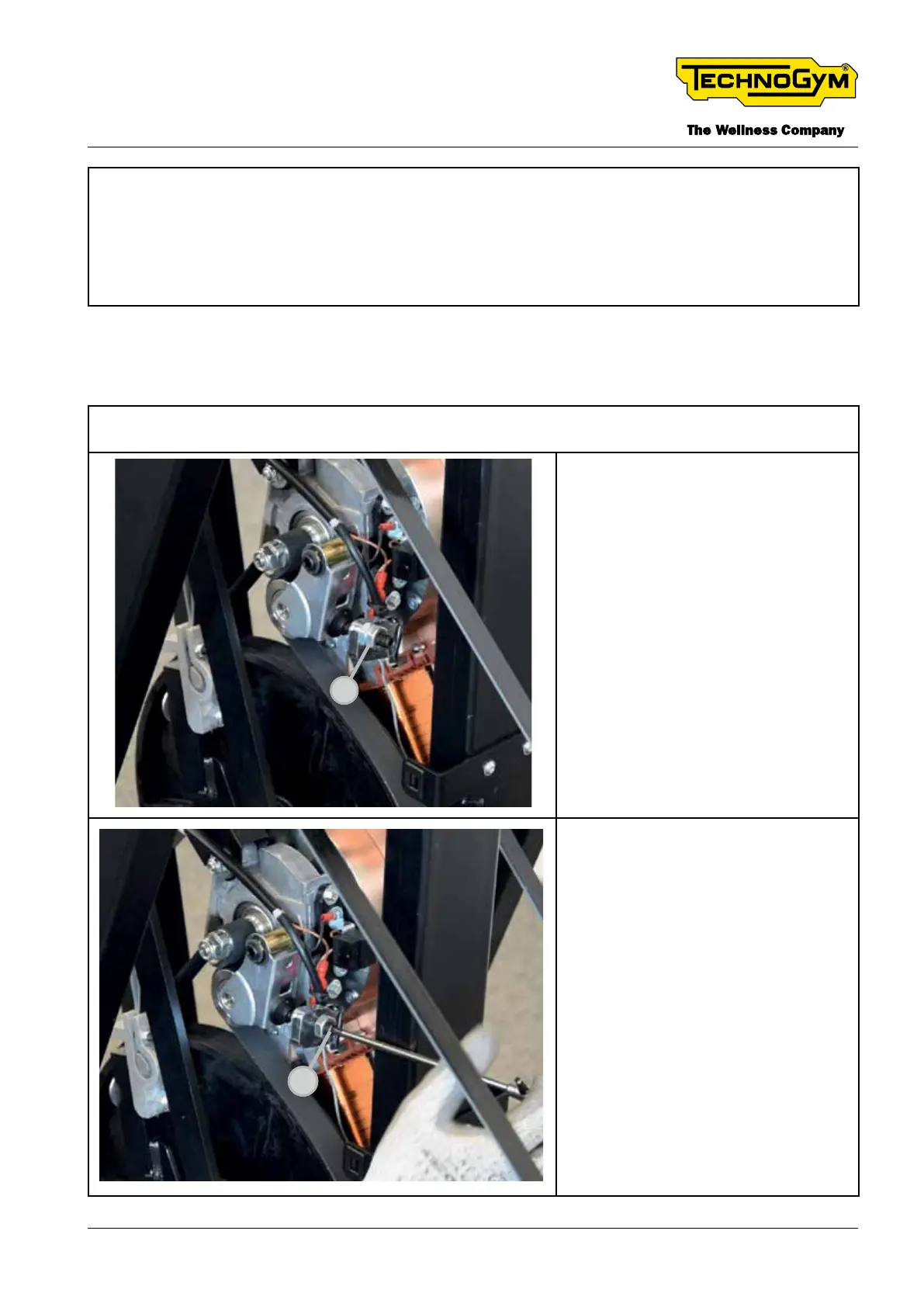

7.15 DISASSEMBLING BELT TENSIONER
Remove all the necessary front casings, without removing the lever of the pedal. For details, see
§”7.9 DISASSEMBLING THE FRONT CASINGS”
72
Loosen the nut [72]. (TOOL: 17mm
open end wrench)
73
Loosen the screw [73]. (TOOL: 5 mm
hexagon key wrench)
