73

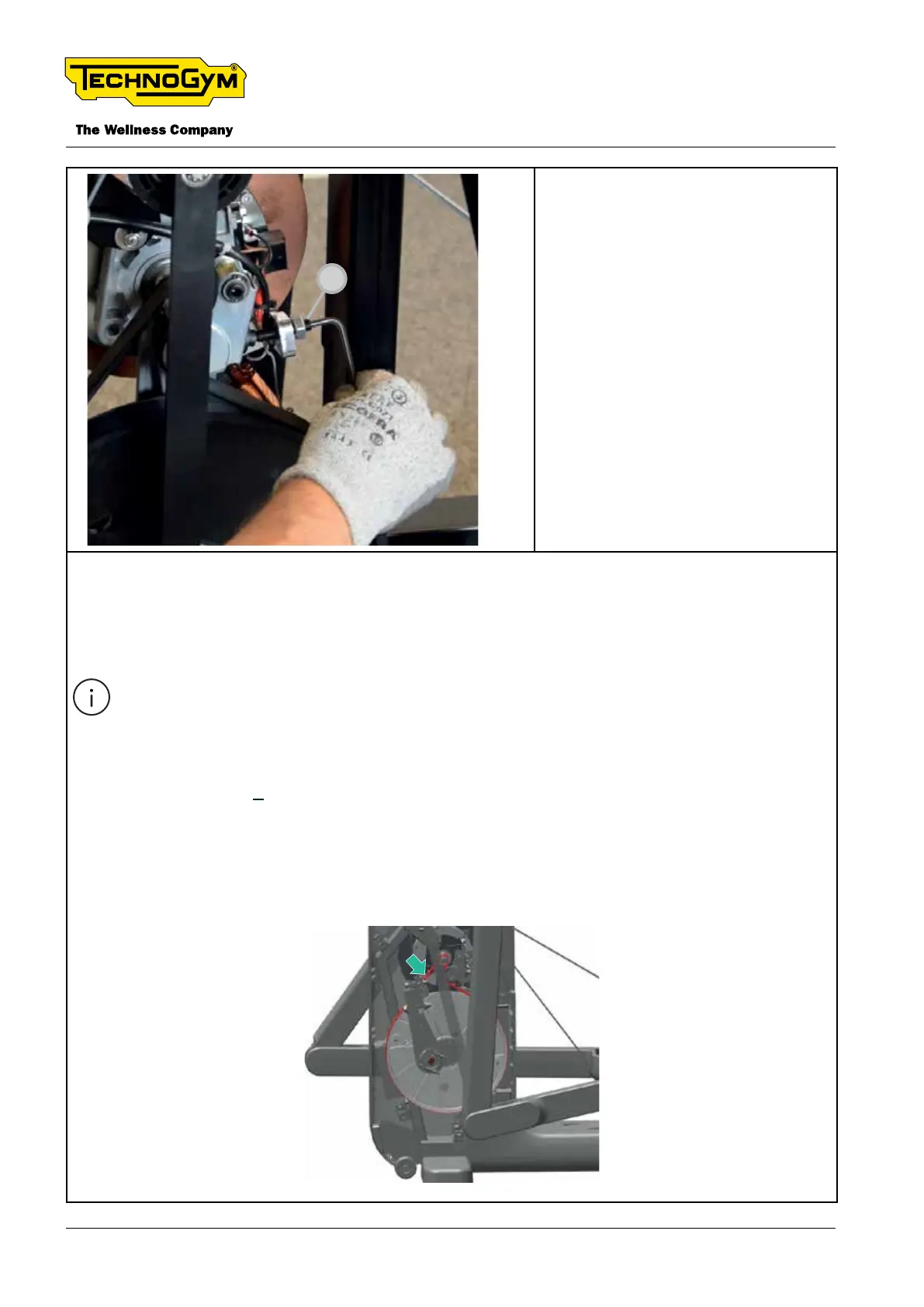

Loosen the screw [73]. (TOOL: 5 mm
hexagon key wrench)
Then remove the belt.
During the reassembly procedure:
_Position the belt around the pulley, rotating it.
_Adjust the belt to the correct frequency, loosening/tightening the screw [73] (TOOL: 5mm hexa-
gon key wrench).
First Installation : If the belt is replaced with a new one, tension the new belt to the frequen-
cy: 190 + 10 Hz.
If the belt is loosened / removed and then the same one is reassembled: tension the belt to the
frequency: 160 + 10 Hz.
(TOOL: TEN-SIT Belt Tension Meter or EASY TENSION Application only if installed on iOS De-
vices (with externally connected microphone))
The arrow below indicates the reference of where the frequency must be measured.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 112 -
