9
8

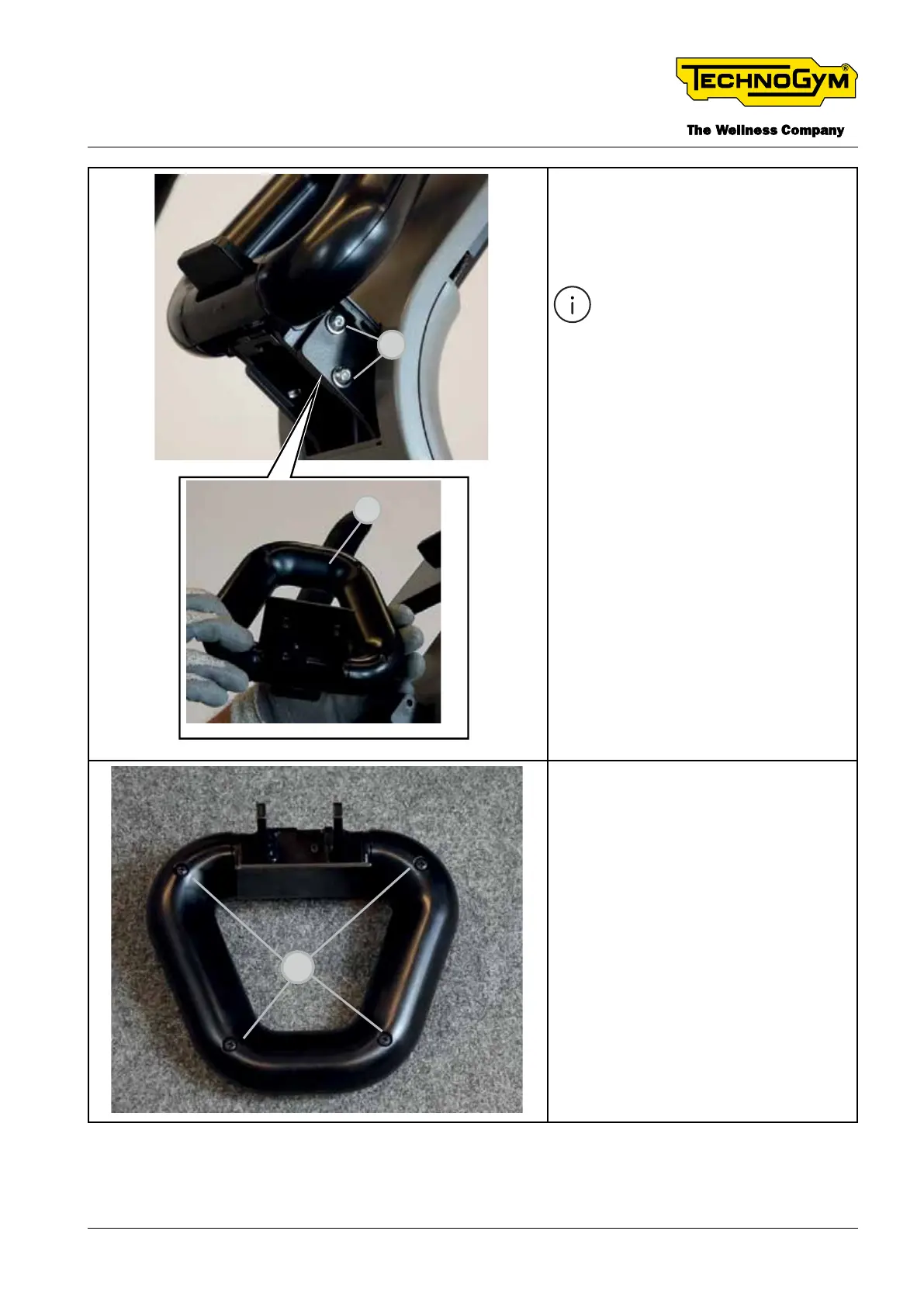

Remove the two screws [8] from each
side of equipment (TOOL: 4 mm hex-
agon key wrench) and disassemble
the central handle grip [9].
During reassembly, tighten
the screws [8] with a torque
wrench set to 9 Nm [6.6 lbf-ft].
10
Remove the four screws [10] to disas-
semble the lower casing of the handle
grip. (TOOL: Medium Phillips screw-
driver)
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 69 -
