96

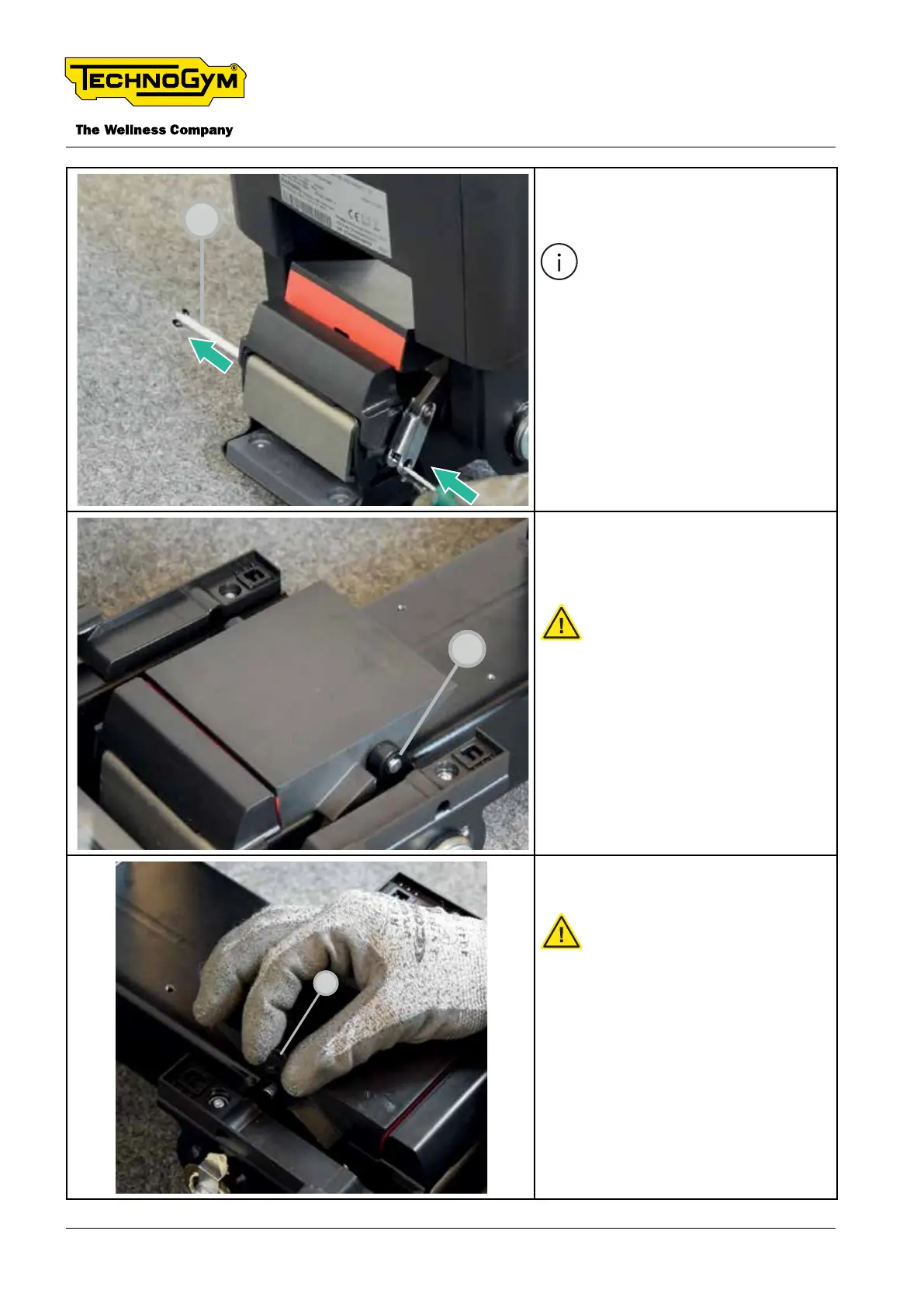

Remove the pin [96]. (TOOL: slotted
screwdriver).
During reassembly, apply
grease on the pin and insert it
into the hole of the casing
97
Lower the rear foot assembly.
Then remove the circlip [97]. (TOOL:
circlip pliers)
CAUTION: To perform the
procedure wear safety glasses.
98
Remove the circlip [98] (TOOL: cir-
clip pliers) also on the opposite side.
CAUTION: To perform the
procedure wear safety glasses.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 122 -
