Technogym ELLIPTICAL - Page 126

88

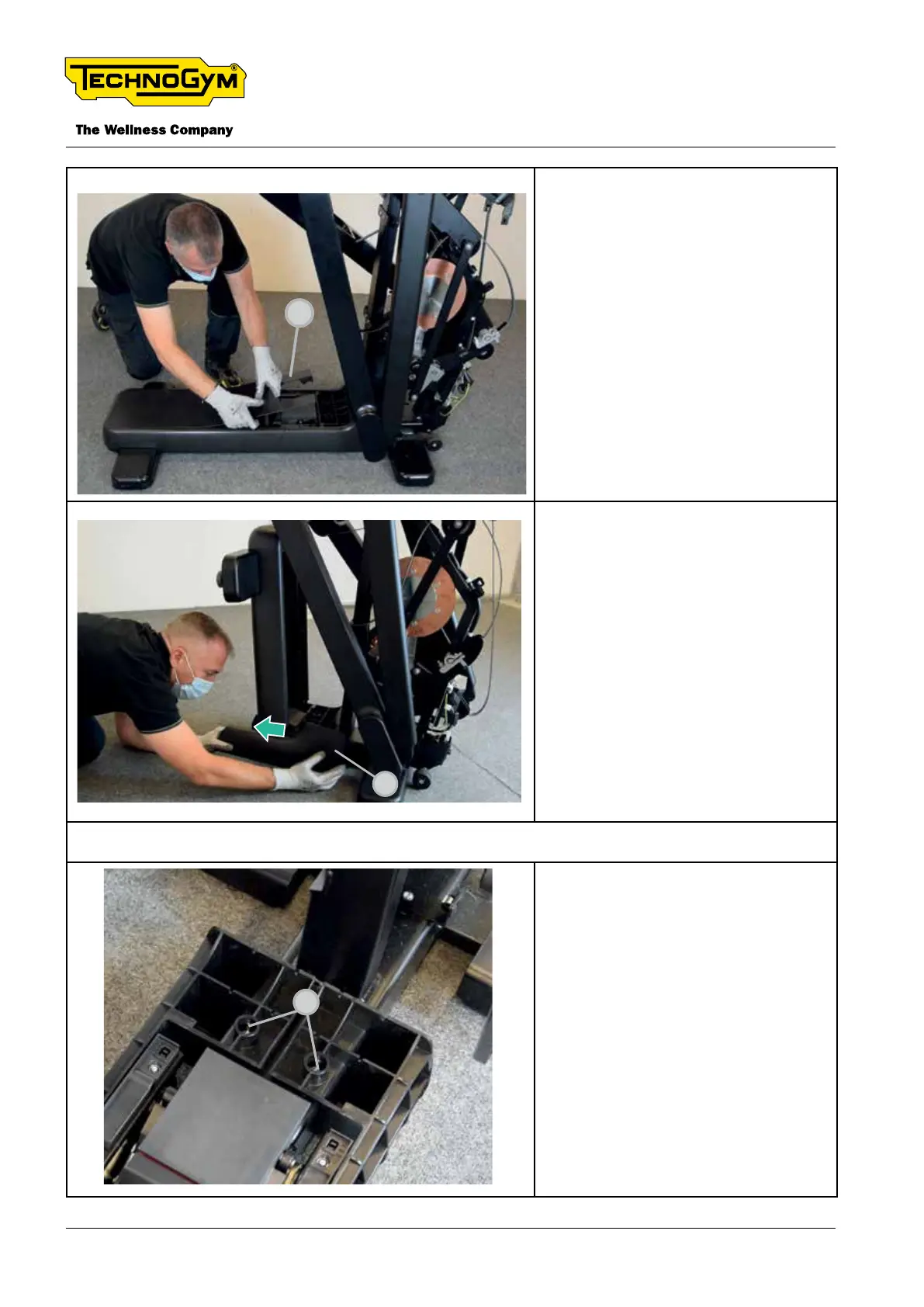

Remove the interlocked casing [88].
189
Keep the unlocking lever pressed
and raise up the rear foot assembly.
Remove the interlocked casing [89].
Repeat the same procedure on the left side. Then remove the interlocked casing.
91
Remove the screws [91]. (TOOL: key
wrench for Torx T25 head screw).
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 126 -
Uncontrolled copy if printed Uncontrolled copy if printed
