B
C
D
A
E

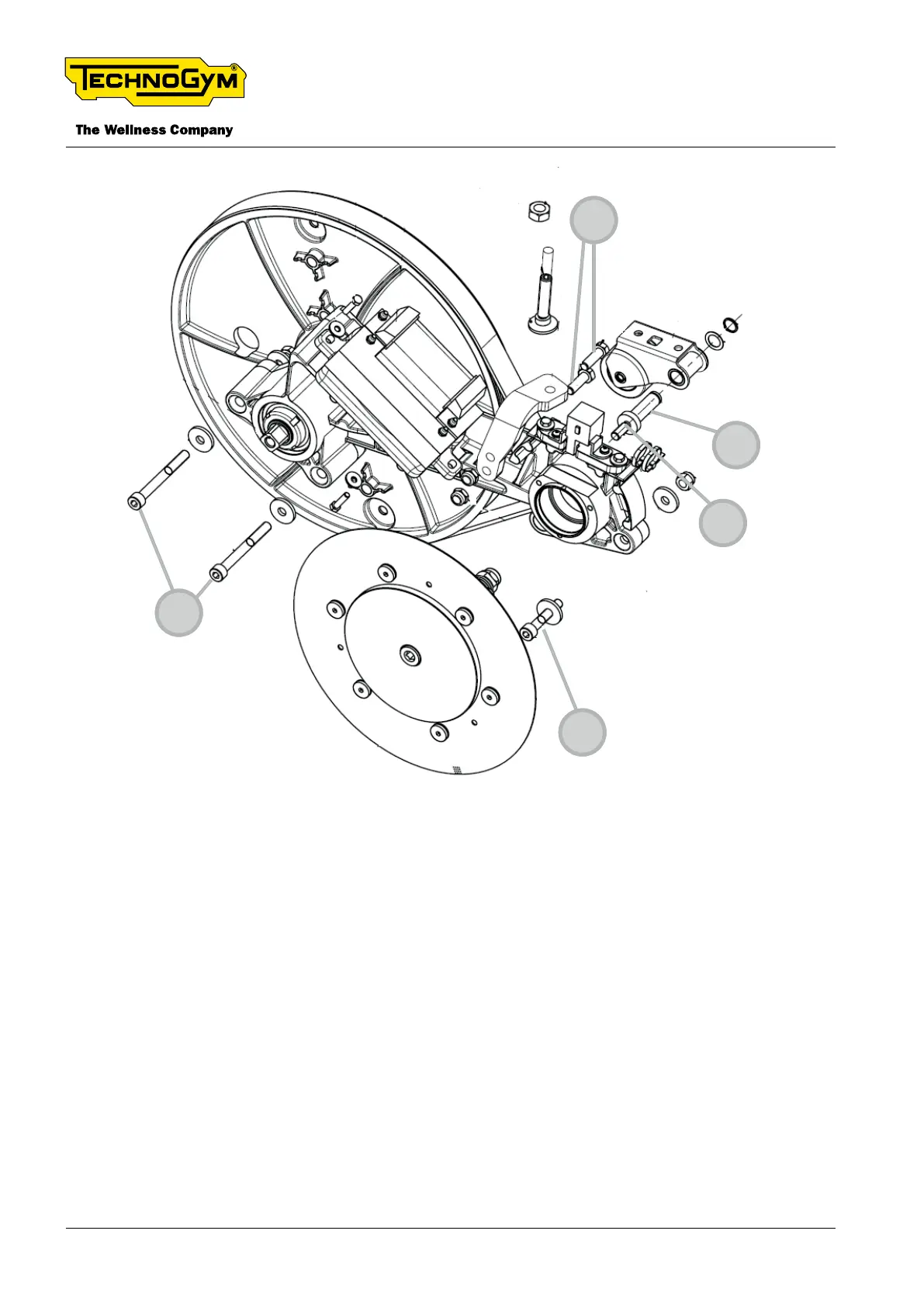

Fig. 40
TIGHTENING TORQUE of the screws [A] : 22 Nm [16.2 lbf-ft].
TIGHTENING TORQUE of the screws [B] and [C] : 40 Nm [29.5 lbf-ft].
During the reassembly procedure grease the pin [D] with White Lithium Grease (Molykote –LongTer-
mW2).
During the reassembly procedure apply Loctite 270 or Superbond 331 on [E]. Afterwards, tighten
the pin with a tightening torque of 10 Nm [ 7.4 lbf-ft].
