24

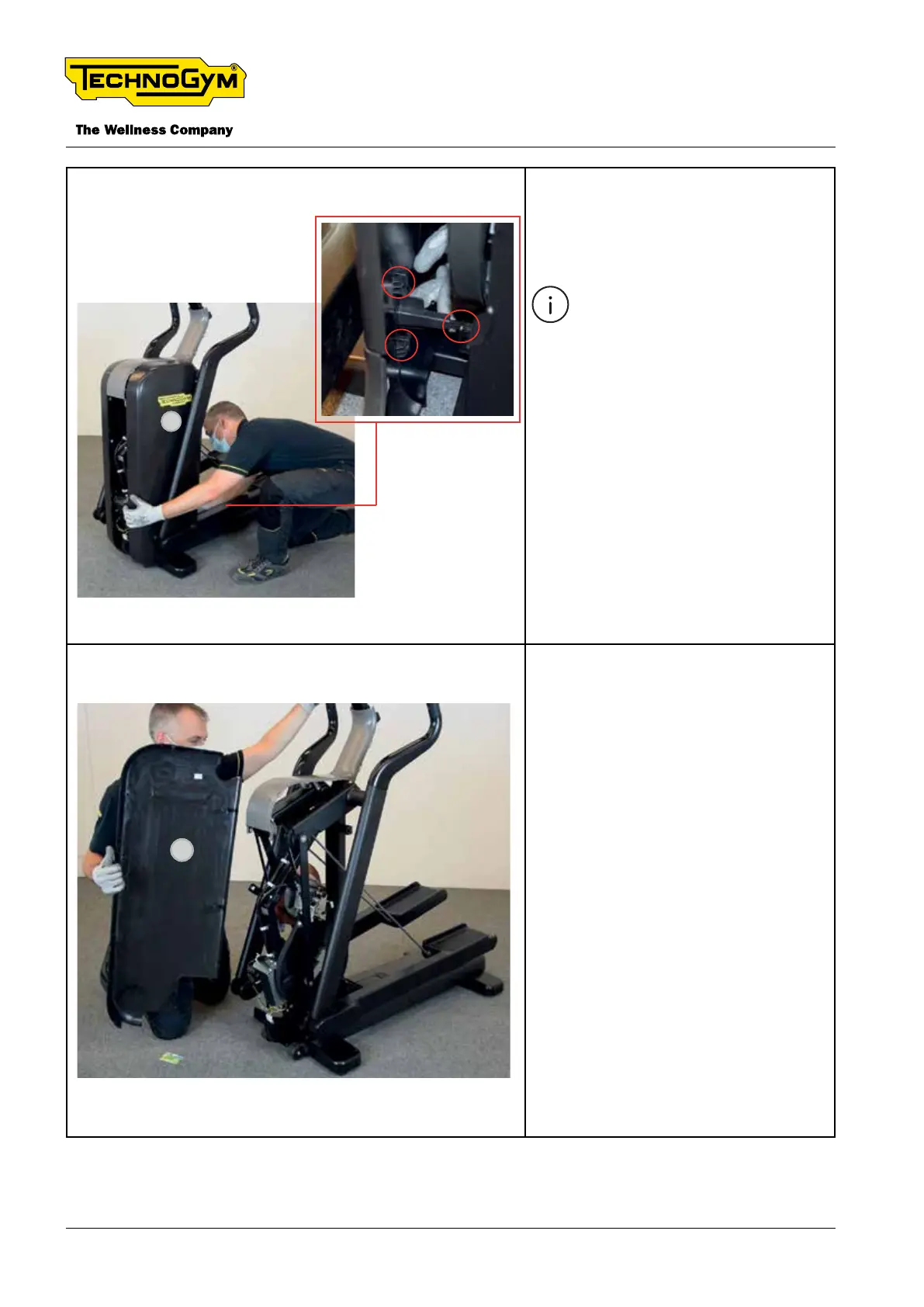

Remove the left casing [24] from the
three teeth detailed in the gure and
then move it [24] towards the front un-
til it is removed.
Before disassembly, move the
arm levers to arrange the in-
ternal components more fa-
vorably.
25
Repeat the same procedure to re-
move the right casing [25].
