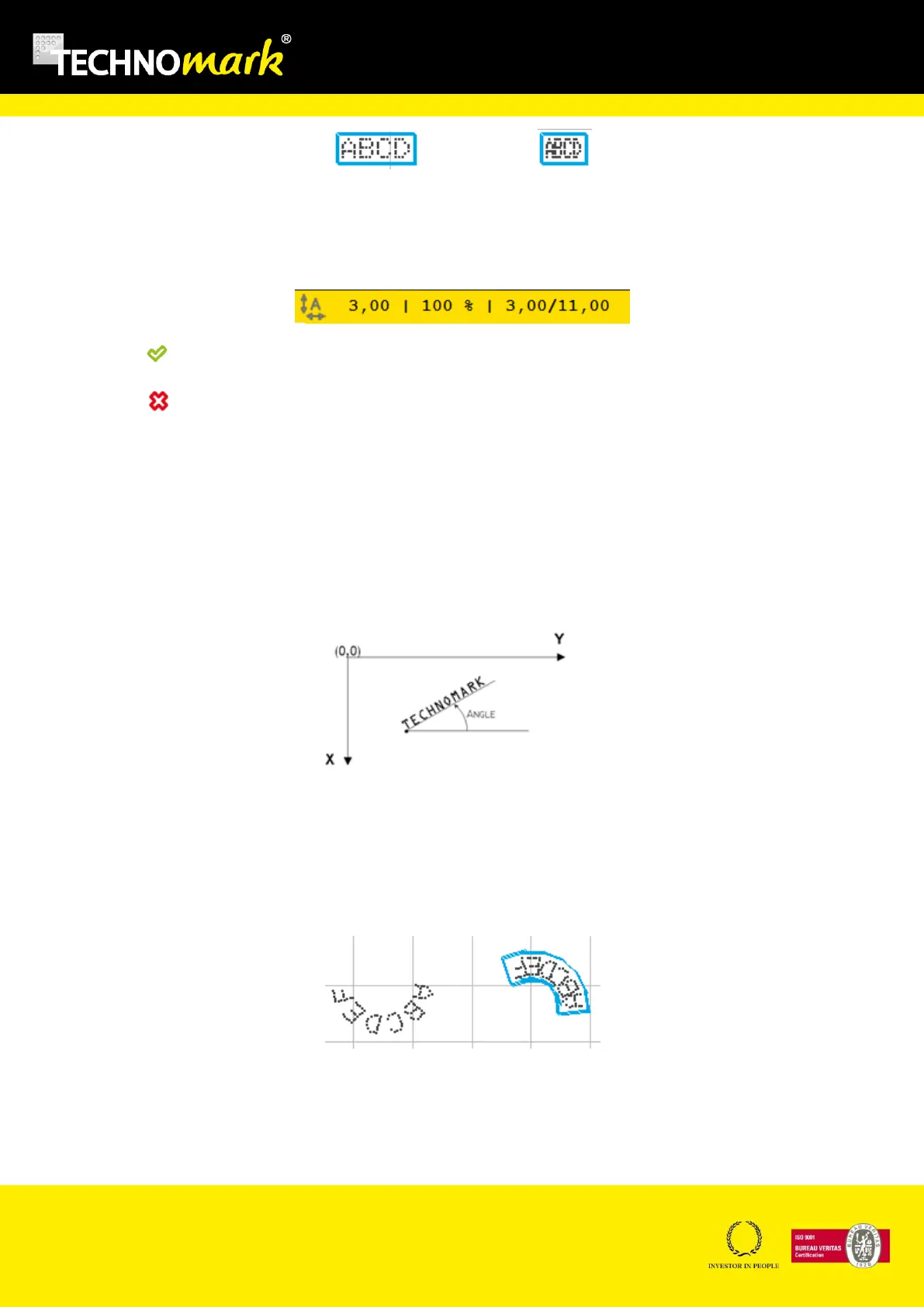

Normal compression compression: 50%
The height, compression values as well as the overall dimensions of the line on X and Y axis are
indicated in a window at the upper left of the screen:
Use , or press again the key to confirm your modification.
Use to cancel your modifications.
d) Set angle and circular marking (circular text).
Pressing Set angle and circular marking allows using the position arrows to adjust the angle and the
diameter for circular marking.
Up and down arrows modify the angle of the current line by steps from 2.5° to 20°.
Right and left arrows modify the diameter to mark a circular text by steps from 0.25mm to 2mm.
If the diameter value is positive, the bottom of the characters is aligned on the virtual circle. If this
value is negative, then the top of the characters is aligned on the circle.
In this example the same text (ABCDEF) is done with a positive diameter value (left) and with the
same value but negative (right)
By default, the machine sets the beginning point a 0 (parallel to the X Axis). To modify the beginning
point, you only have to modify the value of the line angle
