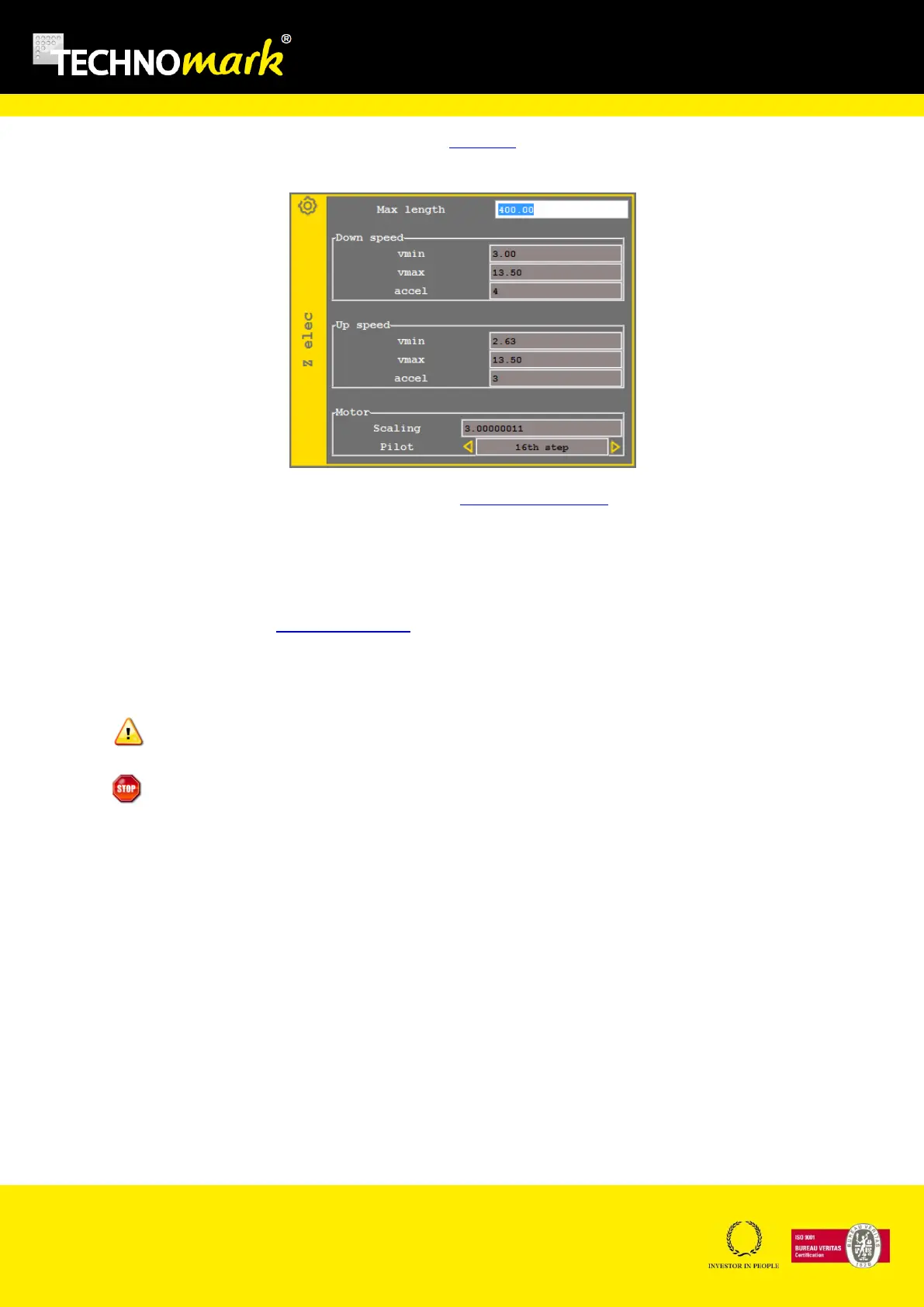

To use Electric Z Axis, you must first declare it as accessory of your marking machine. The maximum
course can be modified with the configuring accessory window:
The distance is defined for each marking file using marking parameters.
When marking using Electric Z accessory, the marking head moves first along XY for the first marking
point, then the head goes down at the defined distance.
During the marking you can define the upward movements of Electric Z (to avoid an obstacle for
example) using function Electric Z upwards
When the machine reaches an electric Z upward line, the column will lift the marking head of the
desired value. If the entered value is negative, the head will go down.
Errors in defined values could damage the machine if it comes to hit the part or the base.
For operators’ safety, make sure that nobody can put a part of his body between the stylus and
the part to be marked during the down movement of the marking head. It is the user’s responsibility
to make sure the working set up is safe.
D. Z Tor Axis
Z Tor Axis is a function to activate relays driving a pneumatic equipment bringing and taking away
parts.
For more information, consult your distributor.
