Info

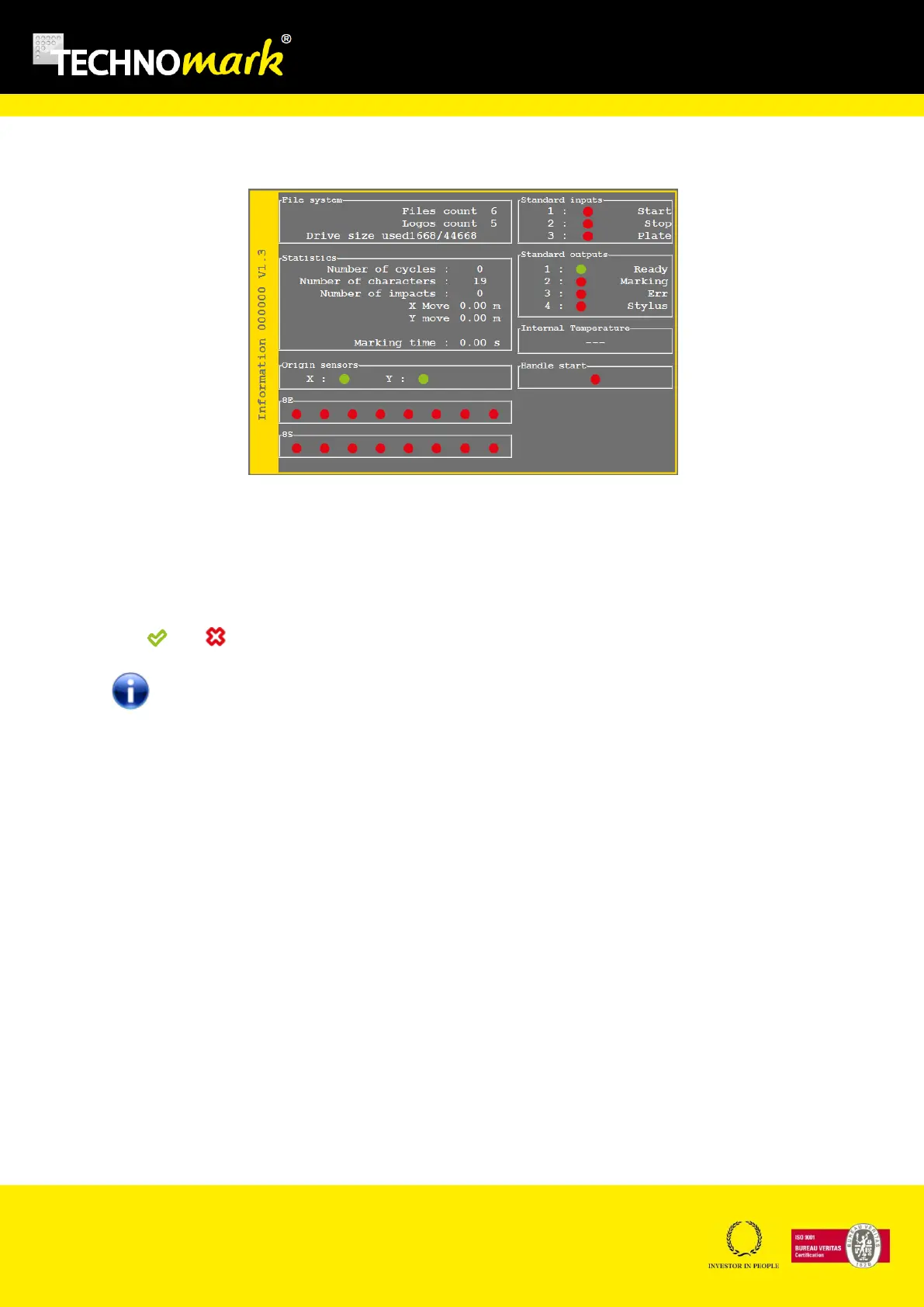

The information window displays several data linked to the machine:
The state of the different sensors is indicated by DEL’s green or red depending on their state:
activated or deactivated
1, 2, 3 and 4 keyboard keys are used to activate/deactivate the corresponding standard output.
1 to 8 key, in combination with shift key allows activate/deactivate the 8E/S card outputs.
Use or to close the window.
When the stylus is in origin position, origin sensors are displayed with a red LED. Indeed, at
each origin return, the stylus is moved to sensor’s detection limit. Thus, during origin return LEDs
display consecutively red then green and finally red. To check if sensors are working, try to move
smoothly by hand the solenoid block to X and Y home position.
Auto diagnosis
Auto diagnosis function will initiate several mechanical controls:
Impactor analysis: make an impact and check that the current circuit is correct.
Cross table analysis: check the origin detection and that there are no hard point along the
mechanical axis.
Third axis analysis (if present):
o If D Axis: Command the D axis to rotate one way then the other way. The operator
must check by himself the movement of the axis.
o If Z Sensor Axis, Z electric or charger: check the origin detection and movements. The
operator must check by himself that the movements are done
Output verification: Commute the 4 output (1 to 4) one at the time. The operator should ear
the relays changing state.
The progress of the auto diagnosis and the results are displayed in a window:
