Acquire the Signal

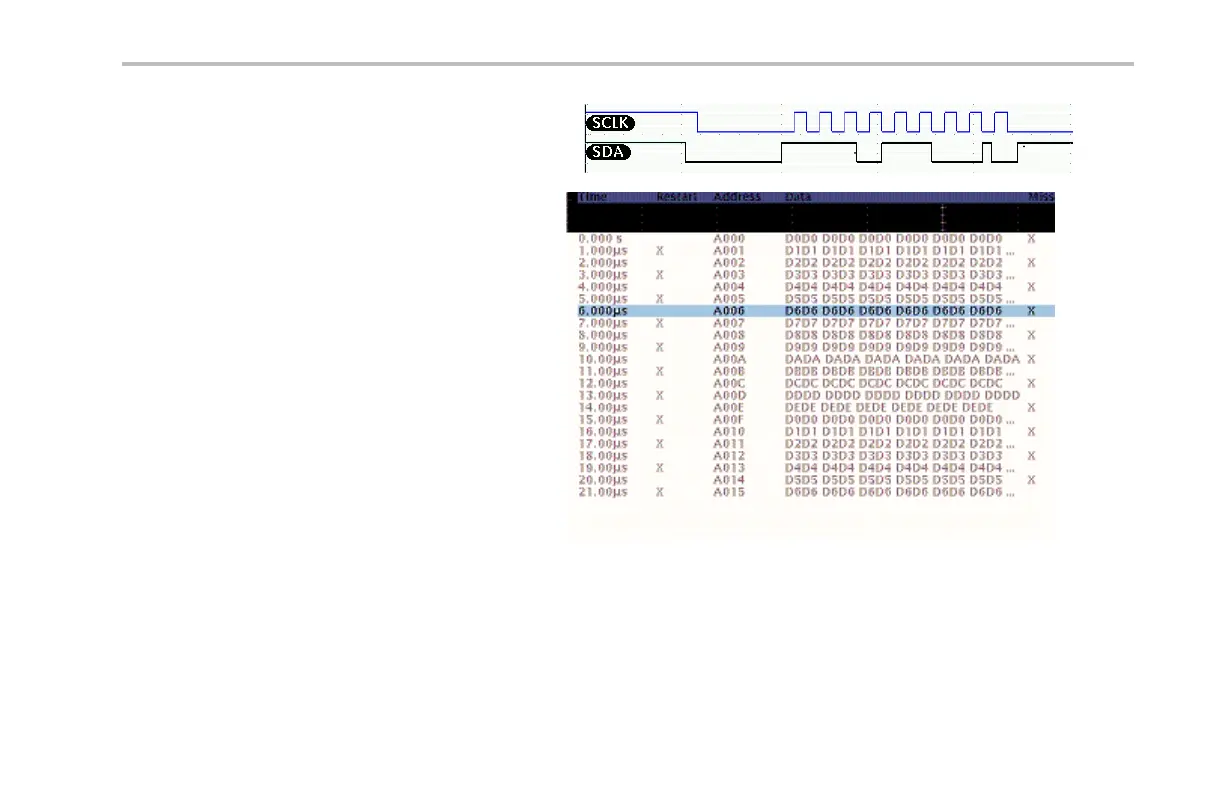

Sample waveforms:
Sample event table:
8. Push Bus Decode and the desired side-bezel
menu choice to display th e bus data in
hexadecimal or binary format.
9. Turn multipurpose knob a to move the bus
display up or down on the screen.
DPO4000 Series User Manual 89
