Analyze Waveform Data
2. Push Cursors again.

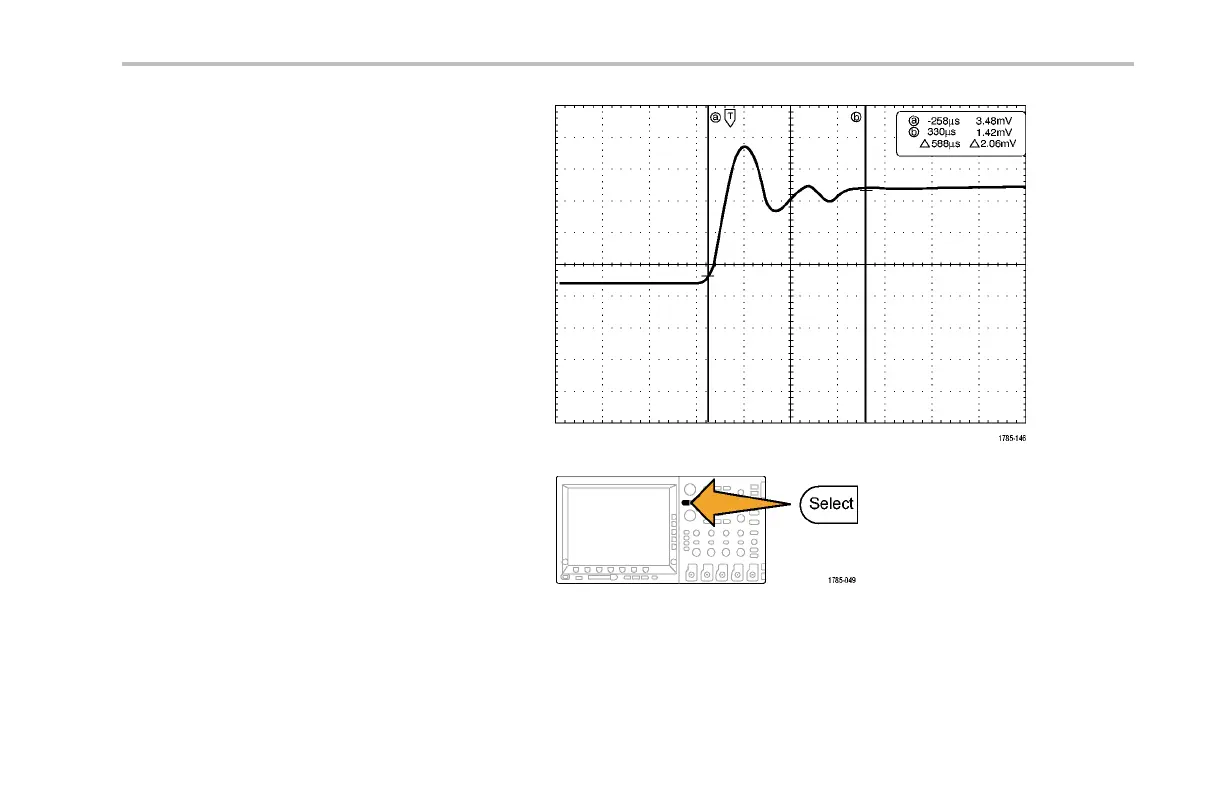

In the example, two vertical cursors appear
on the selected screen waveform. As you
turn multipurpose knob a, y o u move one
cursor to th e right or left. As you turn knob
b, you move the oth er cursor.
If you change the selected waveform by
pushing the front-panel 1, 2, 3, 4, M or
R button, both cursors jump to the new
selected waveform.
3. Push Select.
This turns the cursor linking on and off. If
linking is on, turning multipurpose knob a
moves the two c urso rs together. Turning
multipurpose knob b adjusts the time
between the cursors.
DPO4000 Series User Manual 145
