Tektronix DPO4000 Series User Manual

Analyze Waveform Data

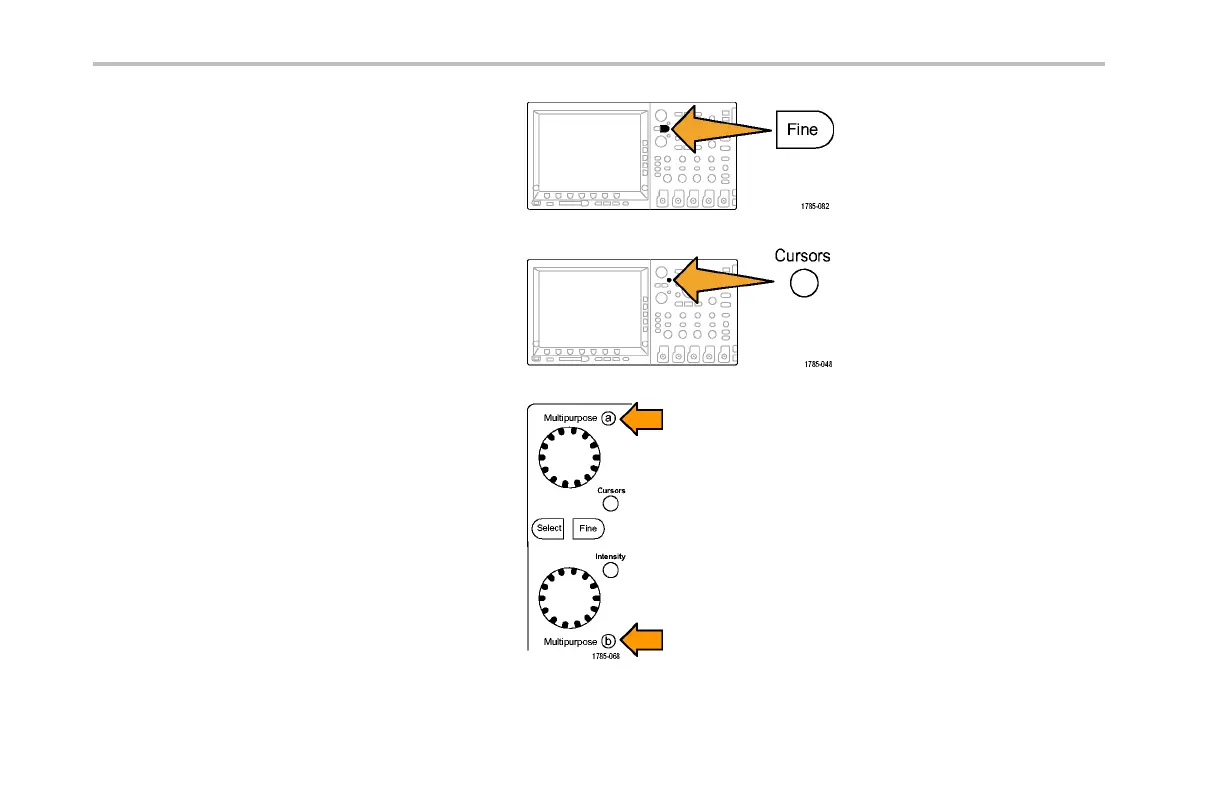

4. Push Fine to toggle between a coarse or
a fine adjustme nt for multipurpose knob s
a and b.
Pushing Fine also changes the sensitivity
of other kn obs as well.
5. Push Cursors again.
This will p ut the cursors into screen mode.
Two horizontal bars and two vertical bars
span the graticule.
6. Turn multipurpose knobs a and b to move
the pair of horizontal cursors.
146 DPO4000 Series User Manual
