Application Examples
The oscilloscope sets vertical, horizontal, and trigger controls automatically. You can manually adjust any of these controls if you
need to optimize the display of the waveform.
When you are using more than one channel, the autoset function sets the vertical controls for each channel and uses the
lowest-numbered active channel to set the horizontal and trigger controls.
Selecting Automatic Measurements
The oscilloscope can take automatic measurements of most displayed signals. To measure signal frequency and peak-to-peak
amplitude:

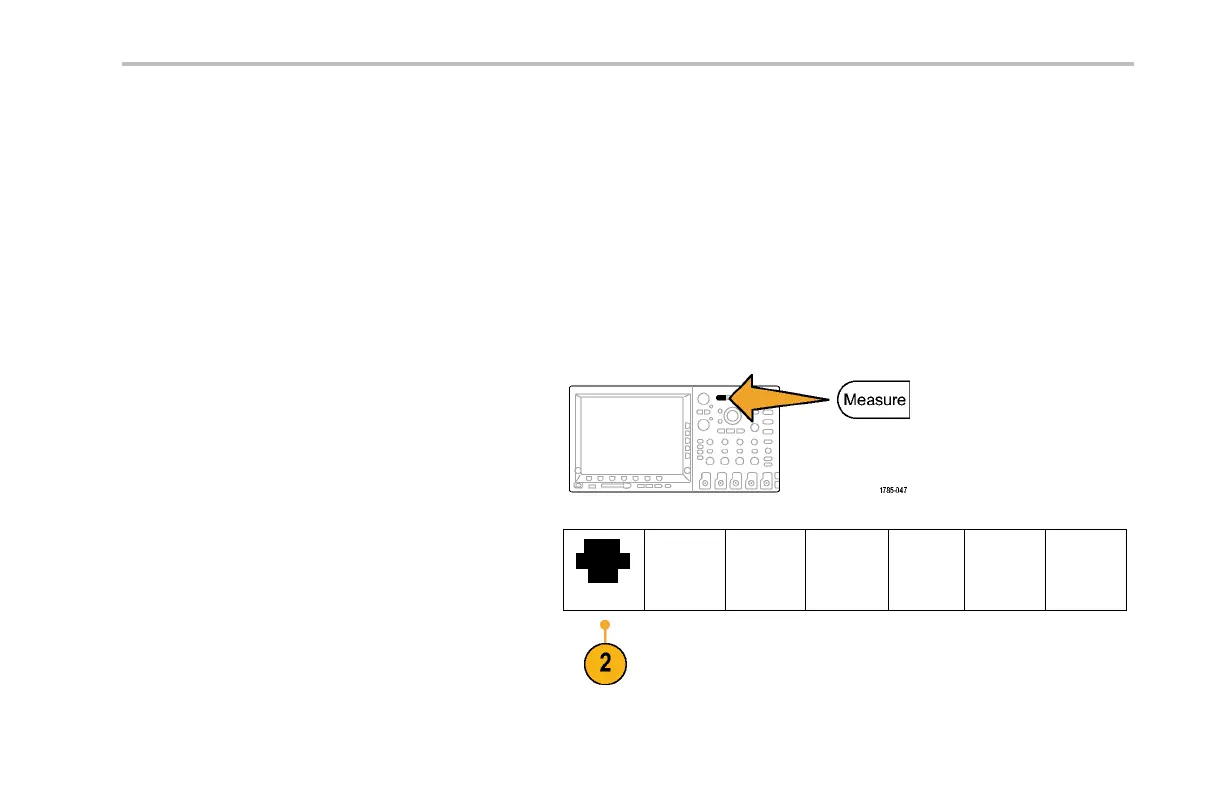

1. Push Measure.
2. Push Select Measurement.
Select
Measure-
ment
a1
Remove
Measure-
ment
Gating
Off
Statistics
Off
Reference
Levels
Indicators
Configure
Cursors
DPO4000 Series User Manual 203
