Tektronix DPO4000 Series - Triggering on a Video Signal

Application E xamp les

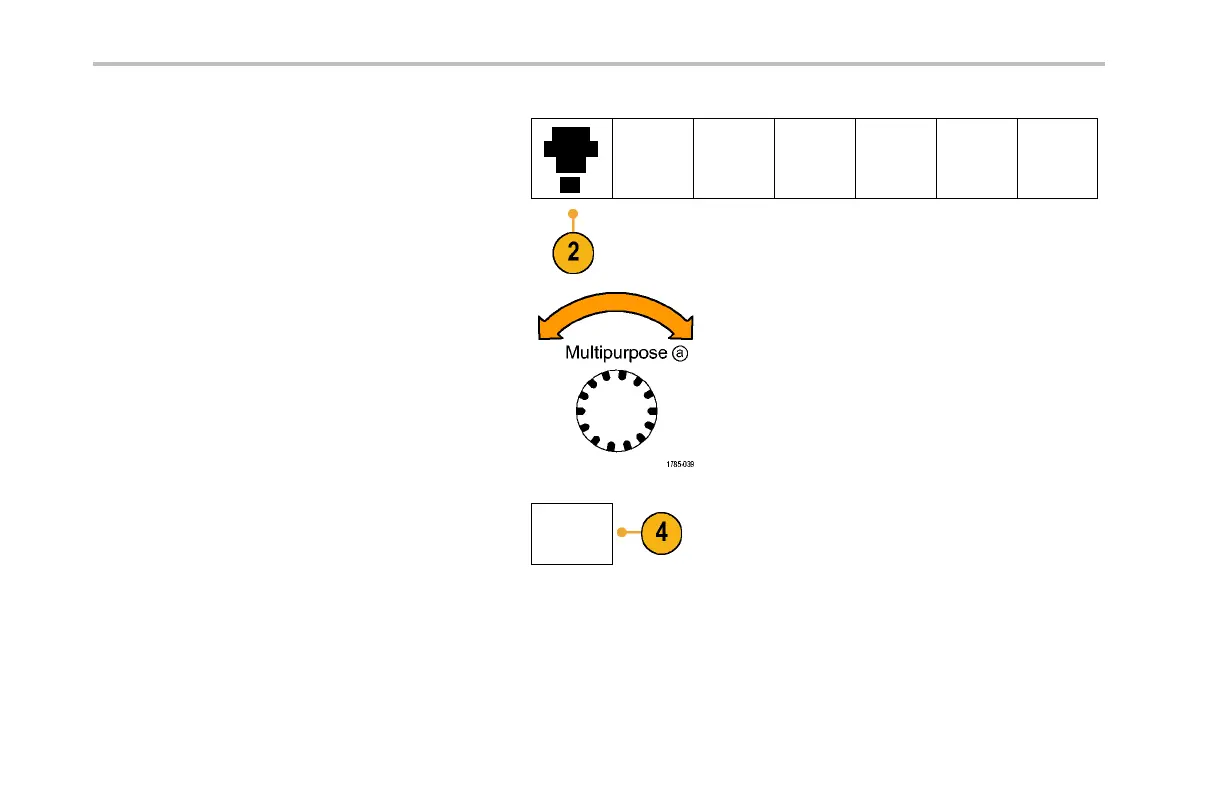

2. Push Select Measurem ent.
Select
Measure-
ment
a1
Remove
Measure-
ment
Gating
Off
Statistics
Off
Reference
Levels
Indicators
Configure
Cursors
3. Turn multipurpose knob a to select channel 1.
4. Page through th e measurement menus until
you find Amplitude. Select Amplitude.
Amplitude
